Introduction
In modern manufacturing, efficiency and precision define competitiveness. Material handling and feeding systems are the backbone of every automated production line. They ensure that raw materials are delivered smoothly to the next stage of processing without interruption. As factories move toward smart manufacturing, the need for integrated solutions that save time, space, and labor has grown significantly. A 3 in 1 uncoiler straightener feeder combines three essential coil handling functions—decoiling, straightening, and feeding—into one compact system. Instead of operating separate machines, manufacturers can rely on a single piece of equipment that synchronizes all these stages. This innovation reduces manual handling, minimizes setup time, and improves consistency across production. Across industries such as automotive, appliance, and electronics manufacturing, demand for automated feeding systems continues to rise. Energy efficiency and production precision are now essential benchmarks. The 3 in 1 system directly supports these goals by optimizing material flow and eliminating redundant steps.
Key Features
Precision and Consistency
The unified decoiling–straightening–feeding process minimizes alignment errors and ensures stable material positioning. Servo-driven feeding systems allow fine adjustments in speed and length, guaranteeing repeatable results even during high-speed operations. This level of precision is critical in stamping applications where tolerance deviations can lead to costly rejects.
Efficiency and Productivity
By eliminating the need for separate machines, the 3 in 1 feeder significantly reduces setup time and production changeovers. Operators spend less time aligning materials or calibrating rollers. The integrated PLC system synchronizes feeding with press strokes, resulting in a faster, smoother production cycle.
Flexibility and Adaptability
The system can process various materials such as mild steel, stainless steel, copper, or aluminum. Adjustable roller settings allow easy switching between materials of different thicknesses. It also supports a wide range of coil widths and diameters, making it adaptable for both small and large production runs.
Safety and Maintenance
Modern 3 in 1 feeders come equipped with multiple safety mechanisms. These include overload protection, emergency stop functions, and safety interlocks. Transparent protective covers prevent accidental contact while allowing easy visual inspection. Regular maintenance is simplified through modular design and automatic lubrication systems.
Working Principle

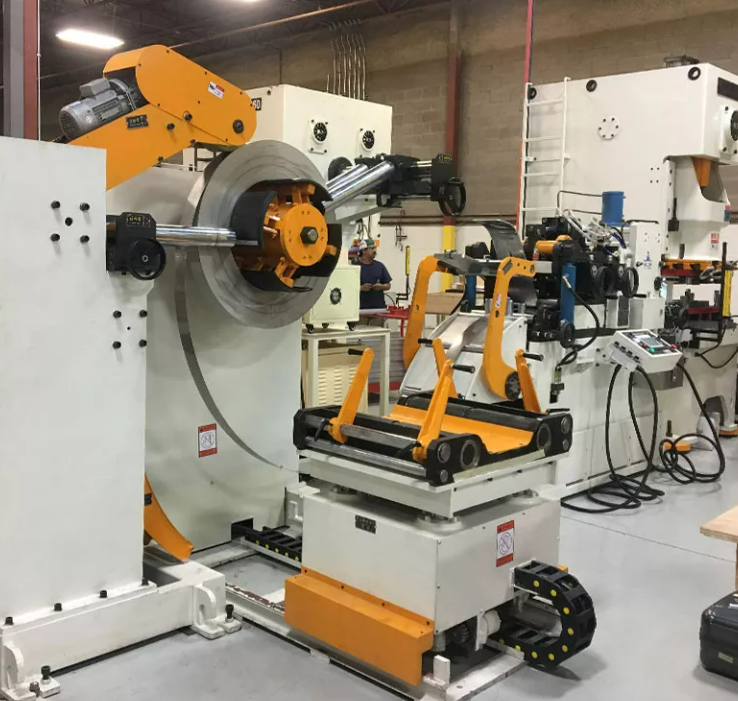

The 3 in 1 uncoiler straightener feeder operates through a coordinated, step-by-step process designed for continuous material flow.
Core Operation Process
The 3 in 1 uncoiler straightener feeder integrates decoiling, straightening, and feeding into one seamless process. The uncoiler unwinds the coil under controlled tension, the straightener removes internal stress, and the feeder delivers the flat strip accurately to the next station. Each section works in synchronization, creating a continuous and stable material flow that improves precision, reduces setup time, and enhances overall production efficiency.
Stage-by-Stage Working Mechanism
In the decoiling stage, the coil is securely clamped and unwound under constant tension to avoid overspinning. During the straightening stage, multiple rollers flatten the material by adjusting pressure and spacing according to thickness and hardness. Finally, in the feeding stage, a servo-driven system pushes the material forward at a precise length per stroke, fully synchronized with the downstream press. This controlled sequence ensures smooth feeding, stable operation, and minimal material waste.
Automation and Calibration
The PLC and servo control system manage start-stop timing, fault detection, and feed synchronization. Operators can save feeding programs for different jobs, allowing fast changeovers and consistent accuracy. During installation, coil alignment, roller pressure, and feed speed must be calibrated carefully to match production needs. Regular inspection and roller gap verification help maintain precision and prevent material damage or feed errors.
Application Scenarios
Stamping and Forming Lines
This equipment is essential in stamping workshops producing automotive brackets, metal covers, or electrical components. It synchronizes perfectly with high-speed presses, ensuring uninterrupted feeding for mass production.
Metal Processing Industry
In sheet metal fabrication, it prepares coil material for cutting, punching, or bending. Its precise tension control minimizes material distortion, improving the quality of finished parts.
Electronics and Precision Manufacturing
For delicate components such as connectors or lead frames, consistent feeding accuracy is crucial. The 3 in 1 system maintains dimensional stability, which reduces waste and improves yield.
Automated and Smart Production Lines
It integrates seamlessly into robotic and automated lines. Communication through PLC interfaces allows real-time data sharing between the feeder and other machines, supporting Industry 4.0 initiatives.
- Name
- Update
- Size
- Downloads
- Thumbnail
- Download
- Copy Link
- Kinglan feeder machine 2023.pdf
- 2024-02-22
- 34.47MB
- 151
-
- Download
- Copy Link
- High-Speed power press.pdf
- 2024-02-22
- 7.34MB
- 142
-
- Download
- Copy Link
- Kinglanpress Product Catalog.pdf
- 2024-02-22
- 11.86MB
- 43
-
- Download
- Copy Link
- Servo Press.pdf
- 2024-02-22
- 21.29MB
- 47
-
- Download
- Copy Link
Company Advantage（Why choose us）

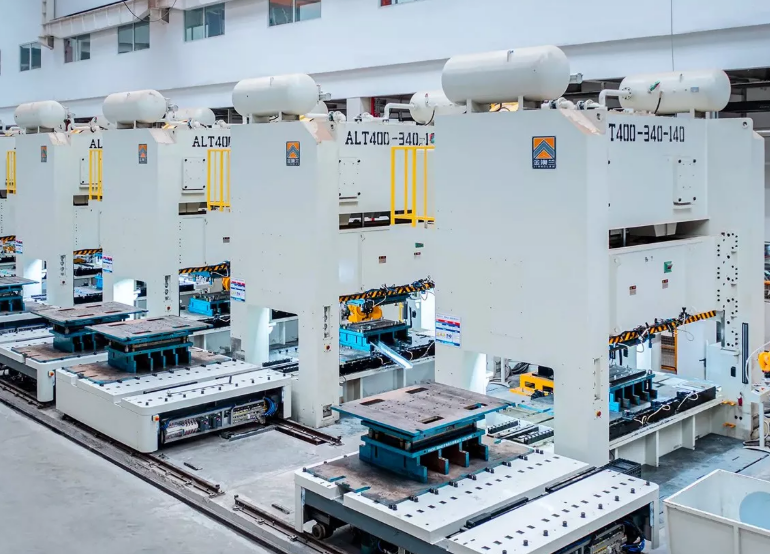

We have been operating since 1983, supported by advanced manufacturing facilities and a comprehensive production system ranging from 25 to 2400 tons. Our long-term expertise enables us to deliver reliable, high-performance press machines that meet global standards.
