Product Overview
1.What Is a 2 in 1 Uncoiler-Straightener? A 2 in 1 uncoiler-straightener is an advanced coil-handling machine that integrates both decoiling and straightening functions in one compact frame. It is designed to simplify coil line production, where raw metal coils must be unrolled, flattened, and fed precisely into stamping presses or other processing equipment. This integration minimizes manual operations and improves overall efficiency. In traditional setups, factories use two separate units — one for uncoiling and another for straightening. The 2 in 1 model replaces them both, allowing materials to move seamlessly from coil loading to flattening in a single continuous workflow. This not only reduces floor space but also ensures better alignment, consistent tension, and smoother material feeding across the line. By combining two vital functions, manufacturers gain a powerful tool for modern automated lines. It is especially beneficial in sectors that demand consistent material precision and high throughput, such as automotive, home appliance, and electronic component production. 2.Why Choose a 2 in 1 Design The main advantage of a 2 in 1 design lies in its space and efficiency optimization. Many factories today face limited floor space, and integrating machines helps streamline layouts without sacrificing productivity. The combined system also minimizes the need for extra wiring, synchronization devices, or manual transfer steps between equipment. A continuous, automated process allows for smooth feeding from the coil directly into the press line. As a result, production downtime and alignment errors are drastically reduced. Additionally, this machine type ensures superior surface protection, which is critical when processing coated or polished materials. Fewer handling steps mean less risk of scratches and deformation. The 2 in 1 uncoiler-straightener provides consistent results even during high-speed operations. By keeping coil tension stable, it prevents overfeeding and improves yield rates, offering a cost-effective solution for both small and large production facilities.
Key Features and Technical Highlights
Integrated Structure

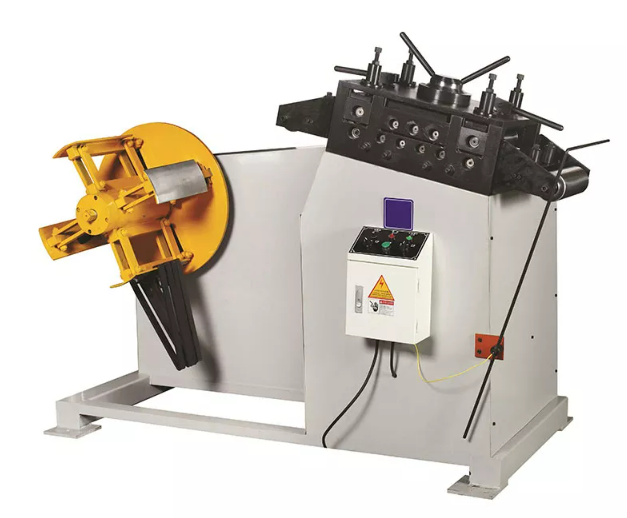

The 2 in 1 uncoiler-straightener features a compact and durable all-in-one frame that supports a mandrel, an expansion system, and multiple straightening rollers. The frame is typically made from high-strength steel or cast iron to ensure stability during long hours of operation. Its unified design allows operators to load, secure, and straighten coils efficiently with minimal setup time.
Drive & Control System
A variable frequency drive (VFD) controls the feed rate, allowing speed adjustment and synchronization with other machines such as feeders and stamping presses. This intelligent coordination prevents coil slack or excessive pull tension. The VFD system ensures smooth startup and deceleration, protecting both material and mechanical components.
Precision Straightening Function
The straightening section is the core of the system, featuring multiple counter-rotating rollers arranged for progressive material flattening. These rollers correct coil curvature, remove internal stress, and improve surface quality. Operators can fine-tune the roller pressure according to the material thickness and hardness.
Safety, Maintenance, and Advantages
Safety is a crucial factor in coil handling. The integrated machine design eliminates unnecessary interconnections between separate decoiler and straightener units, significantly lowering the risk of accidents. Most models come with emergency stop buttons, protective covers, and overload sensors to enhance operator protection. Maintenance requirements are minimal due to the simplified mechanical structure. Routine checks of bearings, rollers, and lubrication points ensure smooth operation. The compact design also makes component access easier, reducing downtime for repairs or cleaning. From a performance standpoint, the 2 in 1 uncoiler-straightener minimizes surface defects such as scratches or dents. It also improves coil handling consistency, making it a valuable asset for high-precision manufacturing environments. Reduced energy consumption and longer part lifespan further increase cost savings.
Typical Application Scenarios
The 2 in 1 uncoiler-straightener offers versatile applications across automotive, appliance, construction, and precision industries, ensuring superior flatness, smooth feeding, and material protection for diverse coil types while boosting production efficiency and product quality.
Automotive Interior Parts
In automotive manufacturing, precision and surface quality are essential. The 2 in 1 uncoiler-straightener ensures high flatness and smooth feeding for decorative or coated materials used in dashboards and door panels. It maintains coil tension, reduces manual handling, and eliminates secondary flattening, preventing surface scratches and ensuring perfect assembly fits.
Home Appliance & Electronics Manufacturing
This machine provides accurate and repeatable feeding for producing housings, brackets, and frames in appliances like washing machines and televisions. Its high-speed, continuous operation stabilizes material flow, minimizes waste, and supports lean manufacturing with quick material changeovers for diverse production runs.
Building Hardware & Equipment Fabrication
The 2 in 1 uncoiler-straightener is ideal for thicker, high-strength materials used in hinges, fasteners, and brackets. Its durable mandrel and rollers handle heavy coils efficiently, maintaining flatness and precision in both mass and custom production.
Selection and Purchasing Guide
Match Material Specifications
Before purchasing a 2 in 1 uncoiler-straightener, evaluate coil width, thickness, and material type to ensure proper compatibility. Select a model with suitable mandrel expansion, coil weight capacity, and roller hardness to maintain stable straightening quality. Using an undersized unit increases wear and reduces performance reliability.
Production and Automation Compatibility
Smooth integration with existing press or feeder systems is critical for maintaining continuous production. Choose models with adjustable VFD control or PLC connectivity to synchronize speed and tension. Proper layout planning, including loop sensor placement, helps avoid feeding delays and over-tensioning, ensuring stable and efficient operation.
Factory Layout and Space Planning
Although compact, the 2 in 1 uncoiler-straightener requires sufficient access for coil loading, maintenance, and safety clearance. Ensure ergonomic control panel placement and proper spacing to improve operator comfort and workflow efficiency. A well-planned layout minimizes downtime and enhances production safety.
Cost and ROI Considerations
While the initial cost may be higher, a 2 in 1 uncoiler-straightener delivers significant long-term savings through reduced labor, compact layout, and higher yield rates. It enhances flexibility, shortens setup time, and improves product consistency, leading to faster payback and higher profitability.
- Name
- Update
- Size
- Downloads
- Thumbnail
- Download
- Copy Link
- Kinglan feeder machine 2023.pdf
- 2024-02-22
- 34.47MB
- 148
-
- Download
- Copy Link
- High-Speed power press.pdf
- 2024-02-22
- 7.34MB
- 137
-
- Download
- Copy Link
- Kinglanpress Product Catalog.pdf
- 2024-02-22
- 11.86MB
- 41
-
- Download
- Copy Link
- Servo Press.pdf
- 2024-02-22
- 21.29MB
- 44
-
- Download
- Copy Link
Company Advantage（Why choose us）

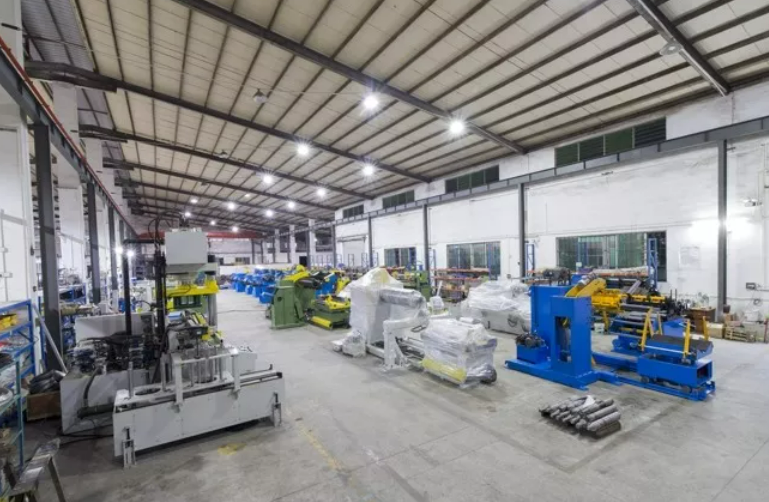

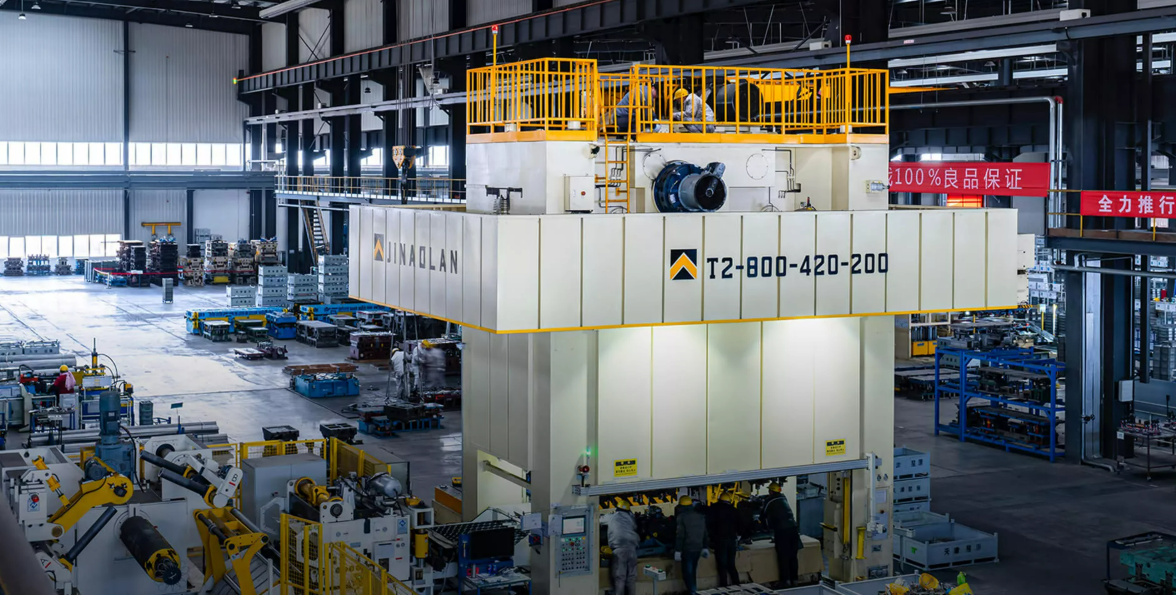

We have been operating since 1983, supported by advanced manufacturing facilities and a comprehensive production system ranging from 25 to 2400 tons. Our long-term expertise enables us to deliver reliable, high-performance press machines that meet global standards.
Deep industry experience and strong infrastructure
We design and build our machines to the highest standards, including JIS B6402 Class 1 precision. With rigid frames, accurate transmission systems, and flexible configuration options, we provide tailored solutions that match each customer’s unique production needs.
High precision engineering and customizable solutions

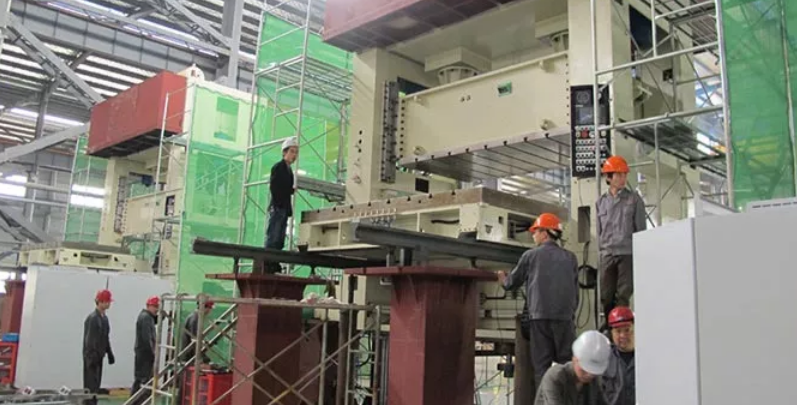

We offer complete support from installation and commissioning to maintenance and spare parts supply. With extensive export experience and a strong global service network, we ensure our clients receive timely assistance and lasting value from every Kinglan Press product.
