Procuring industrial stamping equipment carries massive operational stakes. Selecting the wrong specifications leads directly to accelerated tooling wear, crippling production bottlenecks, and severe safety liabilities on the shop floor. Many facilities make a critical error early in the procurement process. They fail to fully define their exact workpiece composition, die complexity, and long-term project range before evaluating machine capabilities. This misalignment between actual production requirements and machine specifications results in underperforming stamping cells and constant maintenance interventions.

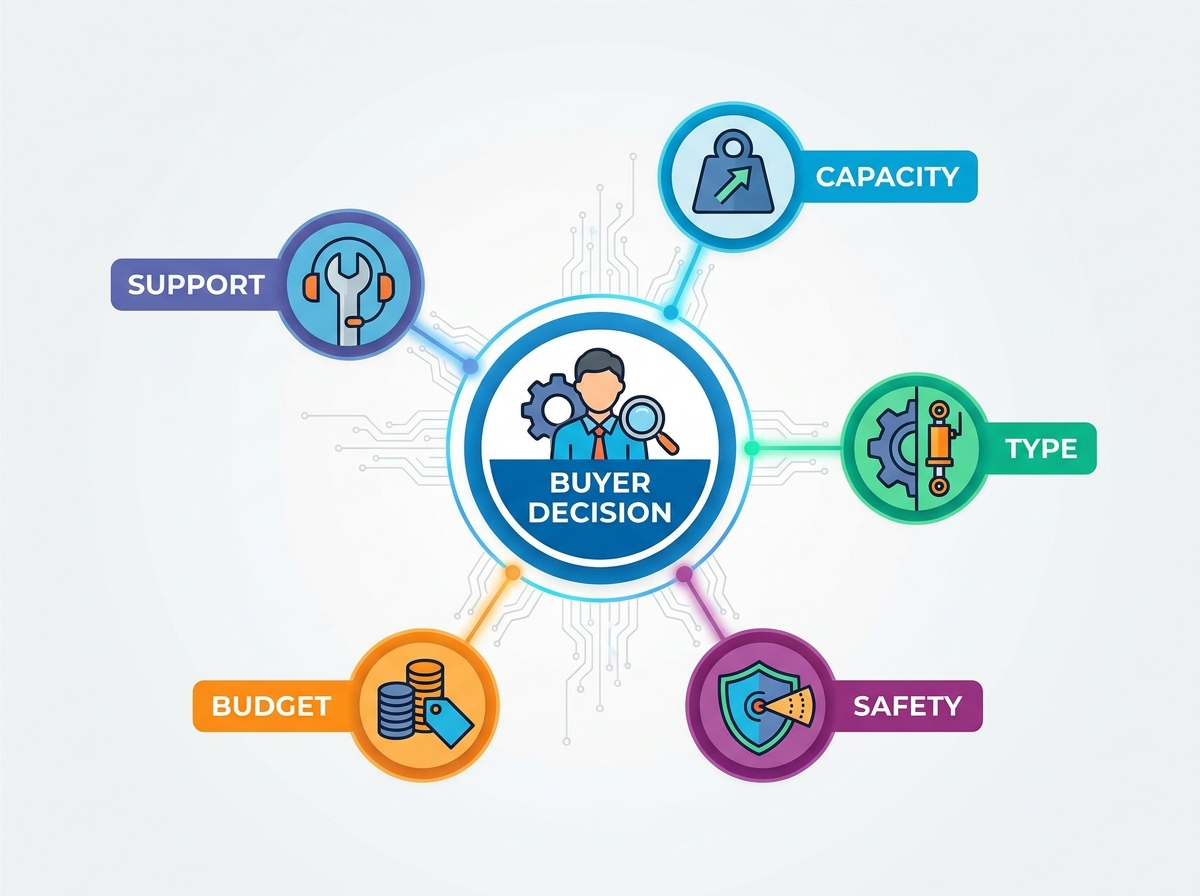

You need a systematic, engineering-first evaluation framework when buying a power press machine. This approach balances technical specifications, facility constraints, and acoustic limitations against your specific manufacturing goals. By analyzing material yield strengths, structural deflection tolerances, and automation readiness, you can secure equipment that handles current production volumes while adapting to future high-strength alloys. The following breakdown provides the technical parameters required to specify, evaluate, and integrate the right press for your facility.
Tonnage is not a static metric: Required capacity must be calculated based on material shear strength, thickness, and perimeter, including a strict 20% safety margin to prevent press overload.
Drive mechanisms dictate application and ram control: Mechanical presses excel at high-speed blanking, hydraulic presses dominate deep drawing with consistent force and superior ram control, and servo presses offer unmatched stroke profile customization.
Frame rigidity impacts die life: Deflection tolerances in C-Frame vs. Straight Side presses directly correlate with tooling maintenance costs and part precision.
Compliance, noise, and automation are baseline requirements: Modern procurement must prioritize OSHA/ANSI compliance, acoustic management, and PLC integration for coil feeders to ensure long-term ROI.
Table of Contents
Under-sizing a press causes catastrophic machine failure. Over-sizing wastes valuable floor space and capital. You must calculate tonnage requirements precisely based on the specific metallurgical composition of your workpiece. Failing to account for material properties leads to severe tonnage miscalculations and equipment damage.
To determine the baseline force required for blanking or piercing, use the standard tonnage formula: Material Shear Strength × Material Thickness × Length of Cut. This calculation provides the absolute minimum force needed to shear the metal. Standard mild steel behaves very differently from advanced high-strength alloys under pressure. High-strength materials require a significantly altered force curve and generate intense snap-through shock.
Determine the total perimeter of the cut in inches.
Measure the maximum material thickness.
Identify the material's specific shear strength in pounds per square inch (PSI).
Multiply these three figures and divide by 2,000 to find the required baseline tonnage.
Add a 20% safety margin to account for tool dulling and material thickness variations.
Snap-through shock, or reverse tonnage, occurs the exact millisecond the punch breaks through the material. The sudden release of built-up pressure sends a violent shockwave back through the press structure. If the machine lacks the structural mass to absorb this reverse tonnage, you will experience cracked frames, shattered gear teeth, and destroyed bearings. Blanking heavy-gauge, high-tensile materials generates the highest levels of reverse tonnage.
Material Type | Approximate Shear Strength (PSI) | Forming Characteristics |
|---|---|---|
Aluminum 6061-T6 | 30,000 | Low tonnage required, minimal snap-through shock. |
Mild Steel (1018) | 50,000 | Standard baseline for most general stamping operations. |
Stainless Steel (304) | 75,000 | High work-hardening rate, requires rigid tooling. |
Advanced High-Strength Steel (DP780) | 110,000+ | Extreme tonnage required, severe reverse tonnage generated. |
Always anticipate future production shifts. If your facility transitions to higher-strength materials next year, a press sized exactly for today's mild steel will fail. Implement a strict 20% minimum safety factor above your current maximum calculated requirements to protect the machine frame and drive components from overload conditions.
The drive mechanism dictates the fundamental capabilities of the machine. You must match the drive type directly to your specific forming, blanking, or drawing operations. Each technology offers distinct force curves and operational speeds.
Mechanical presses utilize a massive spinning flywheel and a clutch mechanism to drive the ram. These machines excel at high-speed, shallow stamping, piercing, and progressive die blanking. A defining characteristic of a mechanical press is its force curve. The machine only achieves its maximum rated tonnage at the very bottom of the stroke, known as Bottom Dead Center (BDC). If your operation requires high force high up in the stroke, a mechanical press will stall or suffer severe clutch damage.
Hydraulic presses utilize pressurized fluid acting on cylinders to move the ram. They dominate deep drawing, complex forming, and low-speed applications. Unlike mechanical variants, hydraulic systems deliver full rated tonnage throughout the entire stroke length. They also offer superior ram control. Operators can adjust the pressure and speed at any exact point during the cycle, preventing material tearing during deep draws.
Servo presses replace the traditional flywheel and clutch with high-torque servo motors directly coupled to the drive shaft. They provide unmatched versatility. You can program exact slide velocities, create custom dwell times at the bottom of the stroke for coining, and reverse the ram instantly. This programmable stroke profile makes servo technology ideal for complex forming and variable production runs. You can run a servo press in pendulum mode, where the ram only travels the exact distance needed to clear the part, drastically increasing production speeds.
Drive Type | Best Applications | Force Curve Characteristic | Speed & Control |
|---|---|---|---|
Mechanical | High-speed blanking, shallow stamping, piercing | Max force only at Bottom Dead Center (BDC) | Very high speed; minimal stroke control |
Hydraulic | Deep drawing, heavy forming, low-speed work | Full tonnage available throughout entire stroke | Lower speed; excellent ram and pressure control |
Servo | Complex forming, variable parts, coining | Full tonnage available at any programmed point | Variable speed; fully programmable stroke profiles |
Frame rigidity directly dictates die life and part precision. Under heavy loads, all metal structures bend. The degree of this deflection determines whether your punches align perfectly with your lower dies or crash into them. You must evaluate frame designs based on your tolerance requirements.
C-Frame, or Gap Frame, presses feature an open front and sides. This design provides excellent three-sided access for tooling adjustments, manual part loading, and integrating automated transfer systems. The open front creates an inherent structural weakness. Under heavy tonnage, the frame experiences angular deflection, often called gaping or yawning. The top of the press bends slightly upward and away from the bed. This yaw misaligns the tooling, causing premature punch wear and out-of-tolerance parts on heavy jobs. C-Frames are generally limited to applications under 250 tons where extreme precision is not the primary driver.
Straight Side, or H-Frame, presses utilize a fully enclosed four-pillar design. The crown, bed, and side uprights are often tied together with massive pre-tensioned tie rods. These tie rods are heated during assembly and allowed to cool, shrinking to pull the frame components together under immense pressure. This architecture eliminates angular deflection. The ram moves perfectly parallel to the bed even under maximum load. Straight side frames are mandatory for high-tonnage applications, complex progressive die operations, and manufacturing parts with extremely tight tolerances.
Frame Type | Deflection Profile | Tooling Access | Ideal Tonnage Range |
|---|---|---|---|
C-Frame (Gap) | Angular deflection (gaping) under heavy loads | Excellent 3-sided access | 20 to 250 Tons |
Straight Side | Minimal vertical deflection, zero angular yaw | Limited to front and rear windows | 100 to 4,000+ Tons |
The physical dimensions of the working area must accommodate your current tooling, the maximum size of the raw material, and any future progressive dies you plan to run. Miscalculating these spatial parameters renders existing dies completely unusable.
Shut height is the most critical vertical dimension. It is defined as the distance from the top of the bed to the bottom of the slide when the stroke is at Bottom Dead Center and the slide adjustment is dialed all the way up. If your die is taller than the maximum shut height, it simply will not fit in the machine. If the die is too short, the ram cannot reach it without adding thick spacer plates.
Evaluate the bolster plate thickness and machining. Heavy progressive dies require massive bolster areas to support the entire length of the tool without sagging. Look for standardized T-slot configurations that match your existing tooling. Standardized slots allow you to implement Quick Die Change (QDC) systems, utilizing hydraulic clamps and die lifters to reduce changeover times from hours to minutes.
Measure the physical length and width of your largest die shoe.
Verify the die shoe fits between the uprights of the press frame.
Measure the closed height of your tallest and shortest dies.
Confirm the press slide adjustment range accommodates both extremes.
Check for scrap drop holes in the bed to facilitate automated slug removal.
Stroke length determines the maximum depth of the part you can form and still successfully eject from the tooling. You must match the stroke length to the part depth, ensuring sufficient clearance for automated material feeding and part ejection systems.
A common mistake involves specifying a stroke length that barely clears the drawn part. If you draw a four-inch deep cup, an eight-inch stroke is insufficient. You need clearance for the punch to exit the part, space for the part to lift out of the lower die, and room for the automation to sweep the part away. Deep drawing operations require exceptionally long strokes to allow for material handling.
Differentiate clearly between maximum SPM and effective SPM. A mechanical press might boast a maximum capability of 200 Strokes Per Minute. Your actual production throughput is limited by the speed of your material handling. If your servo roll feeder can only advance the coil stock accurately at 80 SPM, the press's maximum speed is irrelevant. Upgrading to a high-speed press without simultaneously upgrading the peripheral feeding equipment creates a bottleneck that negates the machine's speed advantage. Mid-stroke velocity also matters. Drawing operations require slower mid-stroke speeds to prevent tearing the metal, even if the machine can cycle faster.
Industrial stamping environments are inherently dangerous. Modern procurement must prioritize operator safety and strict regulatory compliance. Purchasing machinery that lacks modern control reliability exposes operators to severe injury and the facility to massive legal liabilities.
Baseline safety features are non-negotiable. The machine must feature properly sized light curtains that instantly halt the ram if an operator breaks the infrared plane. Physical hard guards must enclose all moving drive components, flywheels, and pinch points. For manual loading operations, two-hand anti-tie-down controls ensure the operator's hands are safely occupied on the console before the ram can cycle. These controls must require concurrent actuation to prevent operators from taping one button down.
Compliance with OSHA 1910.217 regulations and ANSI B11.1 standards for mechanical power presses is mandatory. This requires dual-valve clutch/brake controls with cross-checking monitors. If one valve fails, the second valve stops the press, and the monitor prevents another cycle until the fault is cleared. Avoid purchasing imported or heavily used machinery that lacks these modern redundant safety systems. Retrofitting outdated controls to meet current legal standards requires expensive aftermarket engineering and recertification.
Standalone, manually fed presses cannot compete in modern high-volume manufacturing. Your new equipment must function as the central hub of an automated stamping cell. Evaluate the press control system for open-architecture compatibility with peripheral equipment.
The primary Programmable Logic Controller (PLC) must communicate seamlessly with servo roll feeders, powered straighteners, uncoilers, and scrap conveyors. A closed, proprietary control system forces you to rely on manual setups and prevents synchronized automation. Industry-standard controls from manufacturers like Allen-Bradley or Wintriss provide the necessary integration pathways.
Look for integrated resolver-based programmable limit switches (PLS). These electronic limits allow you to trigger external events—like firing a part-ejection air blast or signaling the feeder to advance—at exact degree marks of the crankshaft rotation. Built-in die protection sensor inputs are also required. These sensors verify that the part has ejected and the material has fed properly before allowing the next stroke, preventing catastrophic die crashes. Integrated tonnage monitors track the force of every stroke, instantly stopping the machine if a dull punch or doubled material spikes the required force.
The physical reality of installing heavy industrial equipment introduces significant spatial, structural, and environmental challenges. You must evaluate your facility's infrastructure before finalizing any machine specifications.
Verify your ceiling clearance. Large straight side presses feature massive crowns and drive motors mounted on top. Ensure you have the vertical space not only for the machine but also for the overhead bridge crane required to assemble the crown during installation and pull the motor for future maintenance. Check the floor footprint to guarantee adequate access for forklifts to load coils and remove scrap bins.
Dynamic loads dictate foundation requirements. A 60-ton C-frame can sit on a standard reinforced concrete floor. A 600-ton straight side press doing heavy blanking requires a specialized, engineered concrete pit with heavy rebar reinforcement. The foundation must absorb massive kinetic energy, often calculated at 1.5 to 2 times the static weight of the machine. In facilities with sensitive neighboring equipment, you must specify vibration isolation mounts to prevent shockwaves from traveling through the floor slab.
Address the acoustic impact immediately. Mechanical presses generate severe decibel levels during heavy blanking operations. This noise easily exceeds OSHA 85 dBA hearing conservation thresholds. You may need to design acoustic enclosures around the stamping cell or specify specialized dampening materials within the tooling to maintain a compliant working environment. Assess your utility infrastructure. Confirm you have adequate three-phase power drops, sufficient compressed air volume for pneumatic clutches and counterbalance cylinders, and proper fluid handling protocols for hydraulic systems.
A machine is only as reliable as the service network supporting it. Prolonged downtime destroys production schedules. You must rigorously evaluate the Original Equipment Manufacturer's domestic support infrastructure before committing to a purchase.
Assess the accessibility of critical wear components. Clutch and brake linings, bronze gibs, rotary cam limit switches, and lubrication system pumps will eventually require replacement. Can your maintenance team access these components without dismantling the entire machine frame? Wet clutch systems run in an oil bath, offering longer lifespan and better heat dissipation than dry clutches, but require more complex fluid maintenance. Centralized, automated lubrication systems are required. They continuously deliver metered oil or grease to critical bearing surfaces, preventing catastrophic friction failures caused by missed manual greasing.
Investigate the OEM's spare parts inventory. Opting for a lower-cost, obscure brand often results in disaster when a proprietary component fails. If the manufacturer does not stock replacement parts domestically, you will face weeks of downtime waiting for international shipping and customs clearance. Demand a clear warranty structure and verify the guaranteed response times for factory-trained field service technicians.
Evaluating equipment strictly on its ability to run today's specific part limits your operational flexibility. You must analyze the machine's overall versatility, energy consumption profiles, and capacity to handle a diverse range of future projects to maximize your return on investment.
Energy efficiency varies drastically between drive technologies. Traditional mechanical presses utilize continuously running main motors to keep massive flywheels spinning, consuming significant electrical power even when the ram is idle. Servo presses eliminate the flywheel entirely. Their high-torque motors only draw peak power during the actual forming stroke and can even regenerate power back into the system during deceleration. This fundamental difference in power draw impacts long-term operational efficiency and peak load shedding strategies.
Assess the machine's adaptability. A highly versatile machine allows you to bid on a wider variety of contracts. A hydraulic press with programmable pressure profiles can switch from deep drawing aluminum enclosures in the morning to coining heavy steel brackets in the afternoon. A servo press can mimic the high-speed snap of a mechanical press for blanking, then switch to a slow, controlled squeeze for forming complex geometries. Prioritize equipment that expands your facility's capabilities rather than locking you into a single, rigid production method.
Audit your current die inventory to document shut heights, bed dimensions, and required tonnage before contacting manufacturers.
Calculate your maximum required force using the shear strength of the hardest alloy you plan to run, adding a strict 20% safety margin.
Verify your facility's floor slab thickness, dynamic load capacity, and overhead crane clearance before finalizing any machine footprint.
Specify open-architecture PLC controls to ensure immediate compatibility with your existing coil feeding and scrap removal equipment.
Founded in 1983, Zhejiang Jinaolan Machine Tool manufactures mechanical presses and related stamping-line equipment, including feeding systems, dies, and transfer solutions. With press capacities ranging from 25 to 2,400 tons, the company supports manufacturers seeking coordinated equipment for automated metal stamping applications.
A: You calculate required tonnage by multiplying the material's shear strength by the material thickness and the total length of the cut perimeter. Always add a minimum 20% safety margin to this baseline calculation to account for material variations, tool dulling, and to prevent overloading the press frame.
A: Reverse tonnage, or snap-through shock, is the violent release of energy that occurs the millisecond a punch breaks through the material. This sudden release sends a massive shockwave back through the press. If the machine is not structurally designed to absorb it, reverse tonnage will crack frames and destroy drive gears.
A: Hydraulic presses are chosen for deep drawing and complex forming because they deliver full rated tonnage throughout the entire stroke length. They also provide superior ram control, allowing operators to precisely adjust pressing speed and pressure at any point, which prevents material tearing during deep draws.
A: Shut height is the vertical distance from the top of the bed to the bottom of the slide when the stroke is at Bottom Dead Center (fully down) and the slide adjustment is dialed all the way up. It determines the maximum height of the die that can physically fit inside the machine.
A: C-Frame presses have an open front, which causes the frame to bend slightly open under heavy loads. This angular deflection misaligns the upper punch with the lower die. Repeated misalignment causes premature tooling wear, chipped punches, and parts that fail to meet dimensional tolerances.
A: Rarely. While the machine may be capable of high SPM, your actual production speed is limited by your peripheral automation. If your servo roll feeder cannot accurately advance the material or your ejection system cannot clear the part fast enough, you must reduce the press speed to match the automation.
