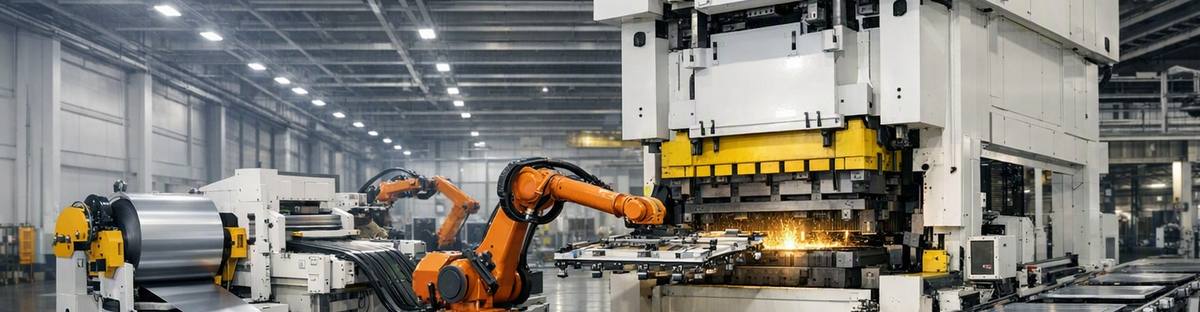

Integrated Stamping Solutions for Appliance Panels
KINGLAN provides home appliance panel stamping line solutions that integrate press machines, stamping dies, material feeding and automated part handling. Each project is configured around the panel geometry, material specification, forming operations and required output.
Depending on the production route, the solution may use coil feeding or pre-cut blank handling, with transfer equipment matched to the press arrangement. Technical planning also considers die access, material flow, available floor space and installation requirements.
Share your panel drawings and production requirements with our team to discuss the equipment configuration and scope of supply.
Key Features of the Appliance Panel Stamping Line
Eight-Link Motion for Forming Applications
Where specified, an eight-link press mechanism provides a motion profile with reduced slide speed through the forming zone. The press and tooling must be matched to the material and panel geometry to achieve the required forming conditions. Confirm the applicable press model and motion characteristics during technical review.

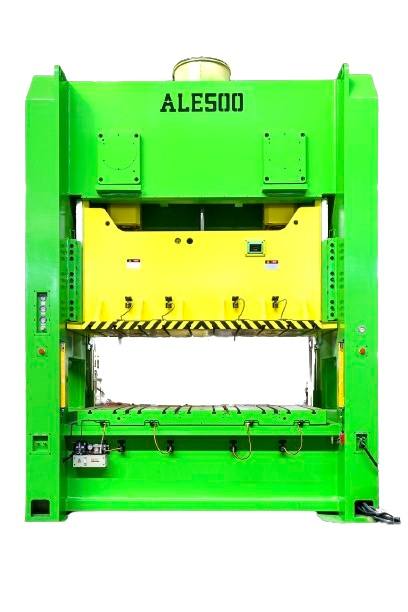

Matched Press and Die Configuration
Press capacity, working area, stroke and die height are reviewed against the tooling and forming requirements. Die weight, loading conditions and any required cushion or blank-holding arrangement are also considered, helping establish a compatible press-and-die configuration for the intended appliance panel.

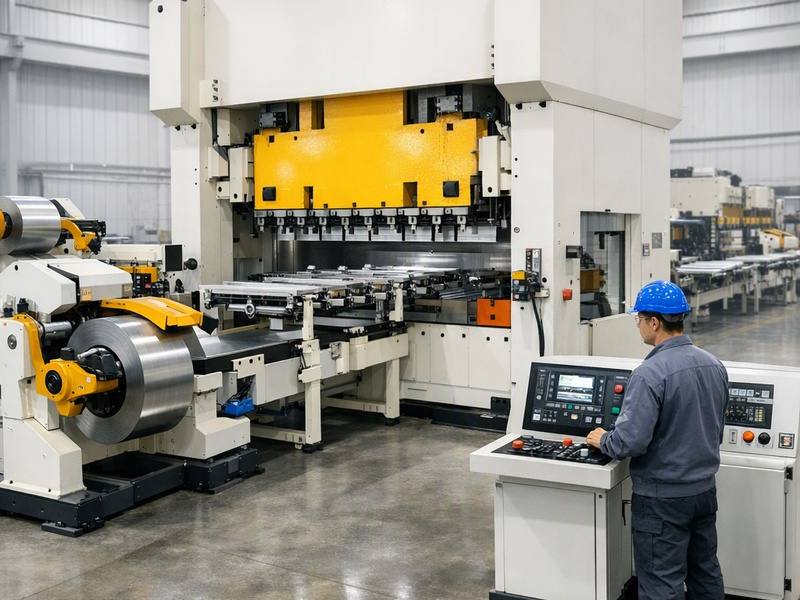

Feeding and Transfer Options
Material handling is configured around the production route. Coil-fed applications may use decoiling, straightening and servo feeding, while pre-cut panels require suitable blank loading and transfer arrangements. Handling points and tooling access are reviewed to support reliable movement between operations.
Coordinated Line Layout and Controls
Line planning considers feeding height, transfer paths, press spacing, maintenance access and material discharge. Equipment interfaces and operating sequences are defined during engineering review, with agreed checks used to verify coordinated operation during commissioning.
Applications in Home Appliance Manufacturing
Appliance sheet metal production covers both visible exterior panels and formed housings. Different parts require different tooling, handling methods and press configurations. KINGLAN reviews these requirements to develop a stamping solution suited to the intended component and production environment.

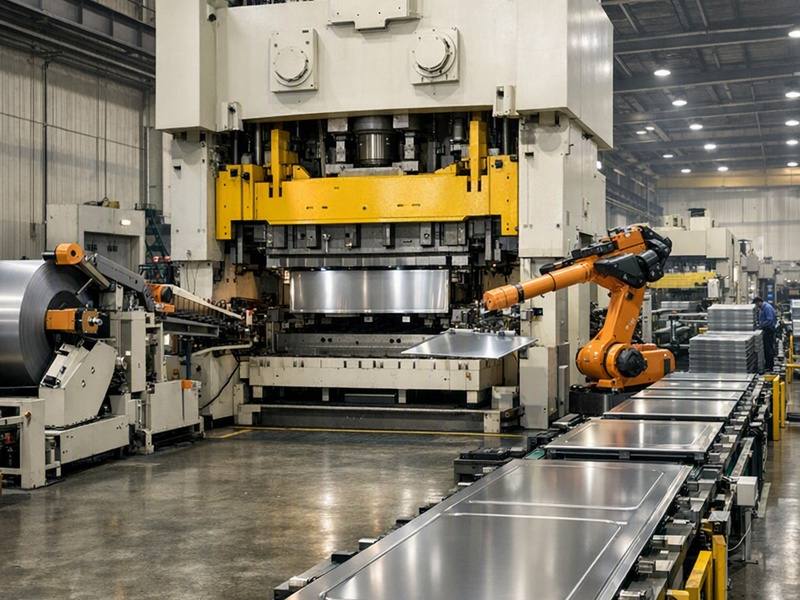

Refrigerator and Washing Machine Panels
Large exterior panels require careful control of formed dimensions, mounting features and visible surfaces. Typical project requirements may include refrigerator door or side panels and washing machine front, side or top panels.
The line configuration is reviewed against the panel size, material finish, forming depth and tooling requirements. For visible surfaces, contact points, transfer tooling and handling methods should be defined to help limit avoidable marking during production.

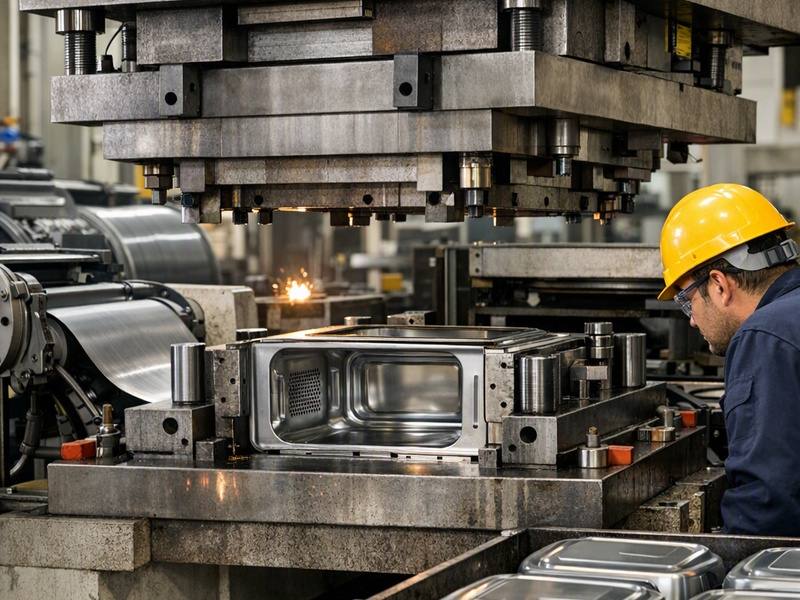

Formed Appliance Housings and Covers
Appliance housings and covers may combine drawing, punching, trimming and flanging operations. The required process sequence depends on the component geometry, material properties and final assembly requirements.
KINGLAN reviews the tooling concept, press characteristics and part transfer arrangement together. For components requiring drawing operations, the technical review should also address blank holding, lubrication and material flow rather than relying on feeding accuracy alone.

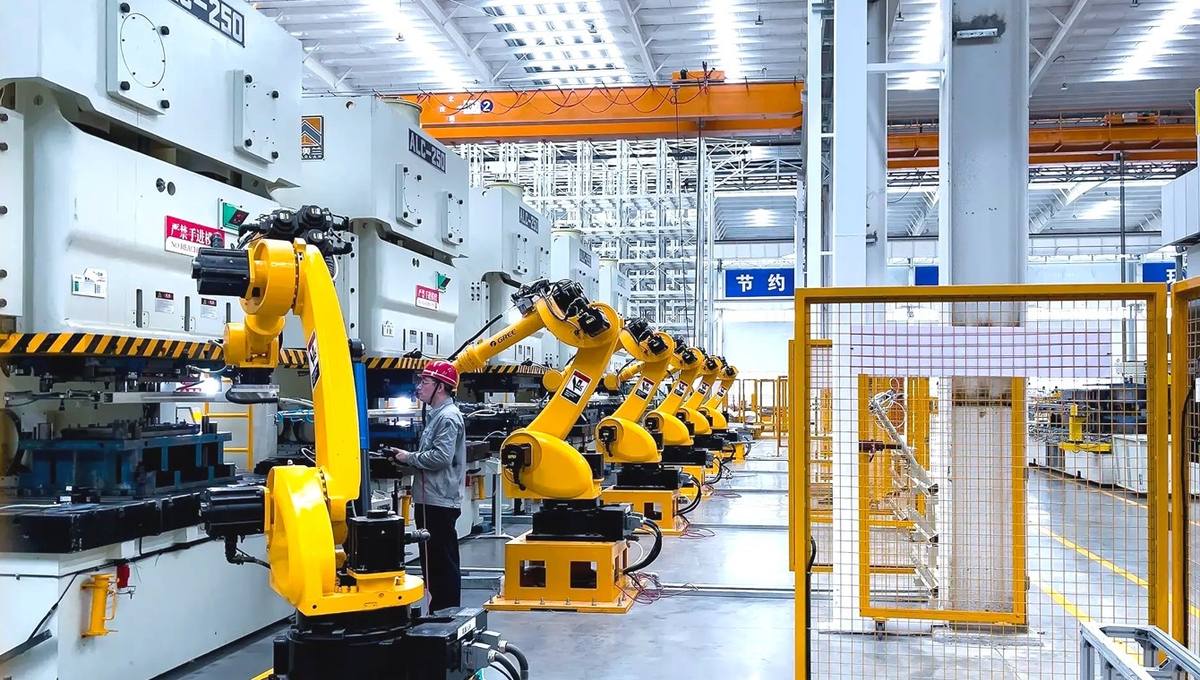

Automation Upgrades for Existing Press Lines
Existing appliance stamping lines may offer opportunities to automate loading, unloading or transfer between presses. The upgrade scope depends on the condition and specifications of the installed equipment, available space and control interfaces.
KINGLAN can review the existing press arrangement and production requirements to discuss suitable automation options. The proposal should identify equipment to be retained, required modifications and integration responsibilities before implementation.
Project Support from Planning to Production
Part-Based Engineering Review
Start with the component rather than a generic equipment list. Panel drawings, material specifications, forming requirements and output targets provide the basis for reviewing the press, tooling and automation configuration.
Defined Integration Scope
Clarify which presses, dies, feeding systems, transfer equipment and controls are included in the project. A defined scope helps purchasing and engineering teams understand interfaces, responsibilities and any equipment supplied separately.
Agreed Acceptance Criteria
Establish project-specific checks for sample parts, operating sequences, safety functions and production trials. Factory and site acceptance activities should follow the agreed specification and record any items requiring further action.
Installation and Operating Support
Plan installation, commissioning, operator training and maintenance support alongside the equipment supply. Confirm site preparation, service arrangements and recommended spare parts before the line enters production.
Technical Resources for Your Stamping Project
Review the available press and feeding equipment catalogs for an introduction to KINGLAN’s product range. Final equipment selection and line specifications are established through project-specific technical review.
For a line proposal, prepare your part drawings, material grade and thickness, blank dimensions, target output and available factory layout. If existing equipment will be retained, include its specifications and control information.
- Name
- Update
- Size
- Downloads
- Thumbnail
- Download
- Copy Link
- Kinglan feeder machine 2023.pdf
- 2024-02-22
- 34.47MB
- 351
-
- Download
- Copy Link
- High-Speed power press.pdf
- 2024-02-22
- 7.34MB
- 335
-
- Download
- Copy Link
- Kinglanpress Product Catalog.pdf
- 2024-02-22
- 11.86MB
- 109
-
- Download
- Copy Link
- Servo Press.pdf
- 2024-02-22
- 21.29MB
- 110
-
- Download
- Copy Link
Your Partner for Integrated Stamping Projects
KINGLAN’s stamping equipment portfolio includes presses, dies, feeding systems and automation equipment. For appliance panel projects, these elements are reviewed as a connected production system, with the scope and interfaces defined around the customer’s component and operating requirements.
Presses, Tooling and Automation
Discuss the press machine, die requirements, feeding method and part transfer arrangement within one project review. Coordinating these elements helps identify compatibility requirements before the equipment configuration is finalized.
Manufacturing and Assembly Capability
KINGLAN’s manufacturing infrastructure supports press production, assembly and inspection. Relevant factory information and equipment documentation can be reviewed during supplier evaluation to understand the proposed production and delivery scope.
Technical Documentation and Service
What to Verify Before Production Handover
Acceptance requirements should reflect the actual appliance panel, tooling and production conditions. Agree the following checks during technical review and record the results against the project specification.
Sample Part Quality
Check agreed dimensions, hole positions, formed features and visible surface requirements using samples produced with the specified material and tooling.
Feeding and Part Transfer
Verify blank loading, material positioning, transfer clearance and unloading sequences. Review handling contact points where surface appearance is important.
Production Trial Conditions
Record the material, tooling, operating settings and trial duration when evaluating output. Distinguish press stroke rate from the number of acceptable finished parts produced.
Handover and Training
Confirm delivery of the agreed manuals, maintenance instructions, training and spare parts information. Document outstanding actions and responsibilities before project closure.
