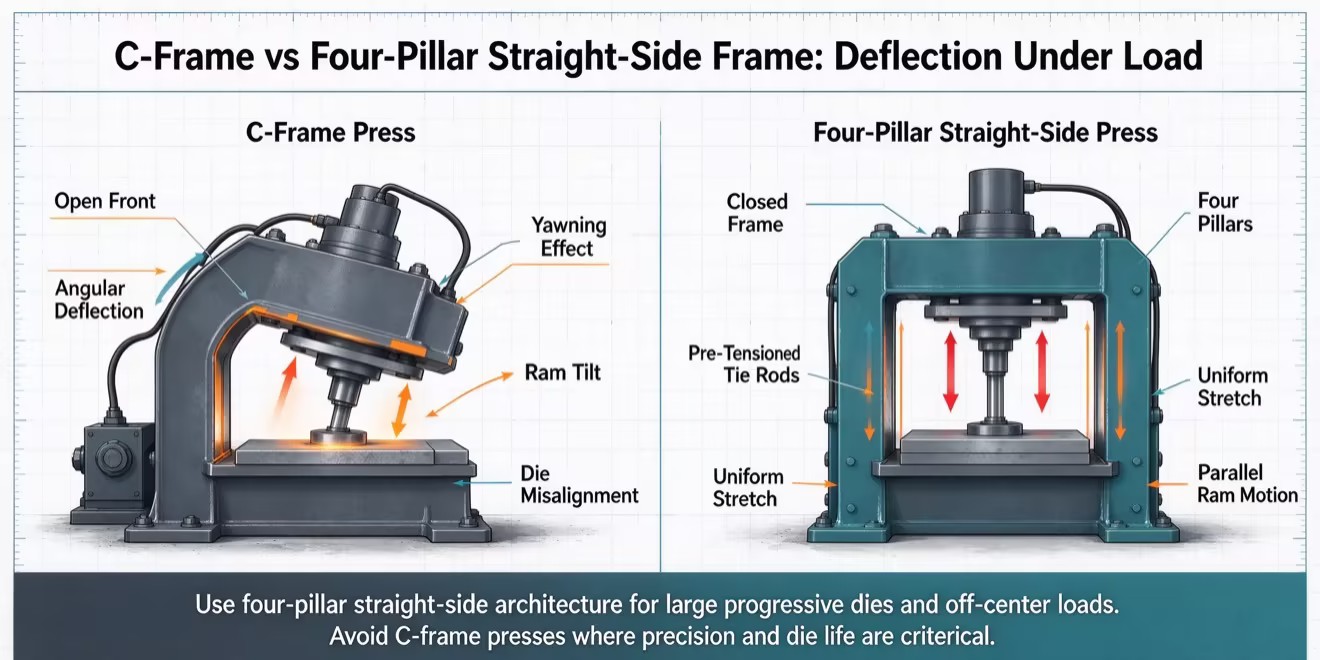

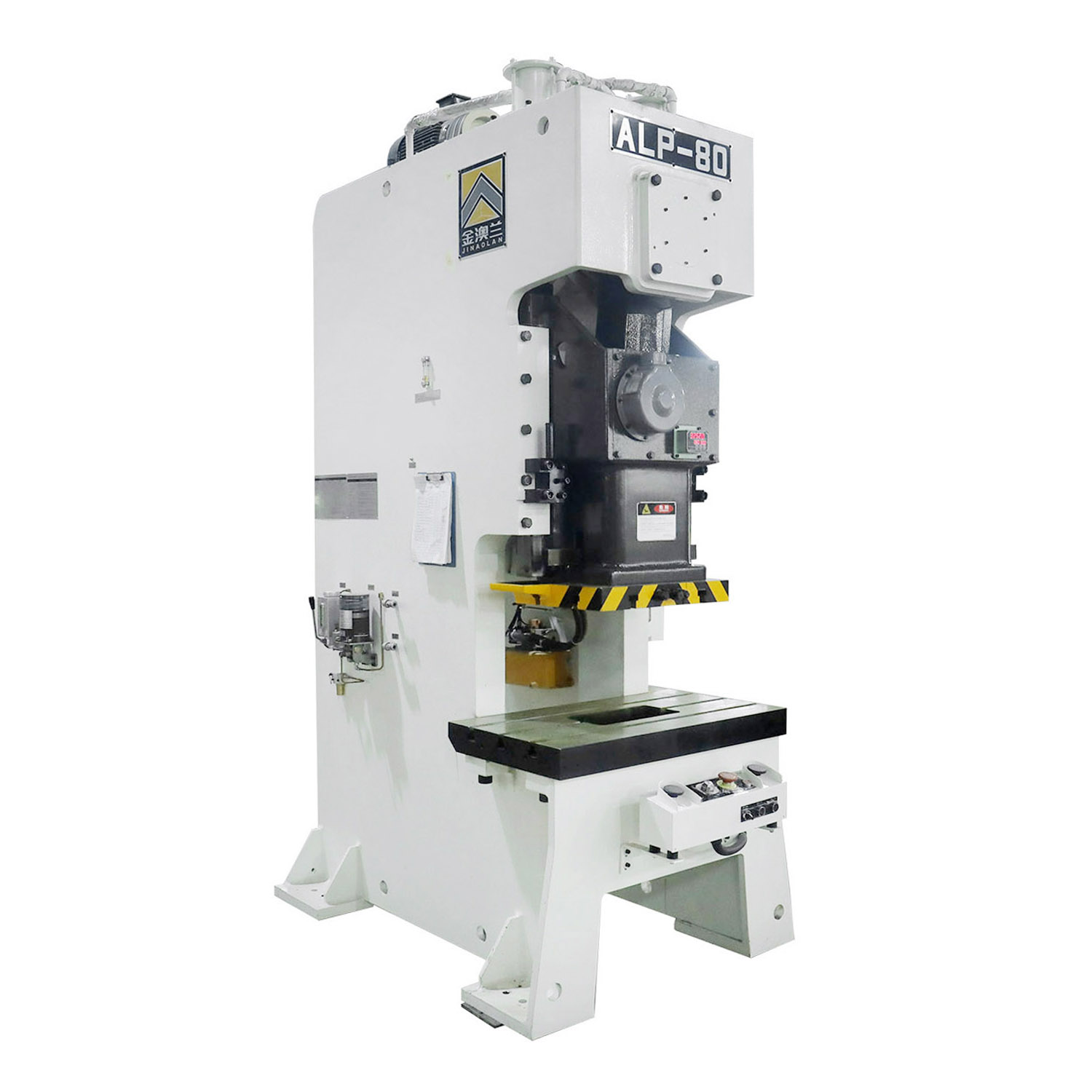

Premature die wear, high part rejection rates, and unplanned downtime drain profitability in large-scale metal stamping operations. When handling massive progressive dies, traditional gap-frame (C-frame) presses often fall short under heavy loads. They suffer from angular deflection, commonly known on the shop floor as the "yawning" effect. As tonnage increases, the open front of the C-frame bends upward. This structural flex throws the punch and die out of parallel alignment, chipping expensive cutting edges and producing out-of-tolerance components. Upgrading the structural design is the definitive solution to eliminate this deflection. Straight-Side Presses utilize a closed, four-pillar frame design that maintains strict parallelism between the bed and the ram. This structural integrity ensures uniform pressure distribution, eliminates angular yawning, and guarantees repeatable precision in high-tonnage, large-bed applications.
Structural Superiority: Straight-side presses utilize a closed four-pillar frame design that eliminates angular deflection, ensuring uniform pressure distribution across large dies.
Extended Tool Life: Enhanced bed-to-ram parallelism drastically reduces lateral wear on guide pins and cutting edges, directly extending the lifespan of expensive progressive dies.
Production Consistency: Constant velocity and controlled stroke kinematics improve part quality, specifically reducing defects like side wall thinning in deep draw applications.
Operational Trade-offs: While offering superior precision, rigidity, and enhanced operator safety, straight-side presses require a larger footprint, specialized foundation engineering, and present more restricted die accessibility compared to open presses.
Table of Contents

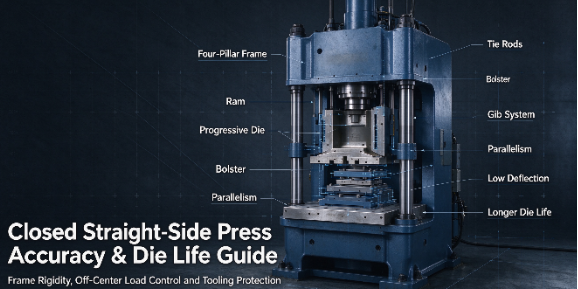

Straight-side presses use a rigid, symmetrical frame structure to minimize angular deflection during high-tonnage stamping. Unlike C-frame presses, which may flex under heavy loads, straight-side designs distribute forces more evenly through reinforced uprights and preloaded tie rods. This improves ram-to-bed alignment, reduces uneven die wear, and supports consistent stamping accuracy.
Straight-side presses provide greater stability when handling off-center loads in large progressive dies. Multiple suspension points and robust slide guidance systems help distribute uneven forces generated by punching, bending, and forming operations. This reduces ram tilting, prevents tooling misalignment, and maintains consistent part quality during high-volume production.
Straight-side presses generally offer higher frame rigidity and more uniform tonnage distribution than open-frame presses. Their closed-frame construction minimizes deflection and supports large dies, high-tonnage operations, and precision stamping. Open-frame presses provide easier tooling access but are more susceptible to angular deformation under heavy or off-center loads. Selecting the appropriate frame depends on tonnage, die dimensions, and precision requirements.
Guiding mechanisms determine the horizontal stability of the ram. Manufacturers utilize various designs to achieve this stability, and selecting the right one depends heavily on your specific stamping application.
Eight-Point Square Gibs: These provide exceptional control by capturing the slide at all four corners, both front-to-back and left-to-right. They offer maximum resistance to off-center loading.
Six-Point Gibs: Often found in slightly smaller straight-side presses, offering a balance between thermal expansion management and lateral stability.
Roller Bearing Guides: These offer low-friction precision for extremely high-speed applications, such as motor lamination stamping, where thermal expansion from friction must be minimized.
Tighter gib clearances prevent horizontal slide movement. During the working stroke, the ram cannot shift laterally. This rigid tracking maintains straight-side press accuracy even under heavy lateral loads generated by heavy forming or cam-piercing operations. Proper lubrication systems continuously feed oil to these gibs, maintaining a hydrodynamic film that prevents metal-to-metal contact while holding clearances as tight as 0.0015 inches.
Hydraulic straight-side presses provide controlled forming force throughout the stroke, making them suitable for deep drawing and complex metal forming. Adjustable speed and dwell time help improve material flow and reduce defects. Mechanical straight-side presses offer higher production speeds and repeatable motion, making them ideal for blanking, piercing, and shallow forming. The best choice depends on forming requirements, production volume, and precision needs.
Straight-side presses offer superior frame rigidity, load distribution, and stamping accuracy but provide more limited side access than C-frame presses. Automated feeding and Quick Die Change (QDC) systems help improve accessibility and reduce setup time. Proper machine guarding, safety interlocks, and automated handling are essential for protecting operators while maintaining efficient, high-precision production.ng it easier to implement comprehensive light curtain systems and physical guarding.
Bed-to-ram parallelism is essential for maintaining stamping accuracy under heavy loads. Dynamic testing measures ram alignment during actual operation, helping identify frame deflection and uneven force distribution. Proper parallelism reduces die wear, prevents dimensional errors, and ensures consistent part quality in high-precision stamping.
Stroke kinematics control ram speed and movement throughout the stamping cycle. Link-drive presses provide slower motion during forming, while servo presses offer programmable speed, position, and dwell time. Controlled forming velocity improves material flow, reduces tearing and thinning, and supports efficient production of complex metal components.
Vibration control protects stamping equipment and tooling from excessive impact forces. Rigid frames, properly tensioned tie-rods, and shock-absorbing systems help reduce reverse tonnage, machine vibration, and operational noise. Effective vibration management extends equipment life, improves stamping stability, and reduces maintenance requirements.
High-precision stamping presses maintain consistent punch-to-die alignment, reducing uneven wear, tooling damage, and maintenance frequency. Rigid machine frames and accurate slide guidance help extend die service life, minimize replacement costs, and improve production efficiency during high-volume manufacturing.
Precision stamping equipment improves dimensional consistency and reduces defects such as burrs, tearing, and uneven forming. Stable ram movement and uniform load distribution support better process capability (Cp/Cpk), lower scrap rates, and fewer secondary finishing operations, helping manufacturers maintain consistent product quality.
Proper stamping press selection helps prevent equipment damage, excessive downtime, and unnecessary production costs. Manufacturers should evaluate frame rigidity, required tonnage, stroke characteristics, automation compatibility, and long-term operating expenses. Accurate capacity calculations and an appropriate engineering safety margin improve equipment reliability and return on investment.
For large progressive dies and high-tonnage applications, the structural integrity of a straight-side press is a non-negotiable requirement. It guarantees sustained accuracy, operator safety, and long-term operational efficiency. Upgrading from a gap-frame eliminates the destructive angular deflection that ruins expensive tooling and causes part rejection.
Evaluate your maximum off-center load requirements based on your most complex progressive dies to determine the necessary gib design.
Measure your required bed area and ensure the press dimensions accommodate future tooling growth and automated scrap removal.
Demand dynamic parallelism specifications and deflection testing data directly from the press manufacturer before signing a purchase order.
Conduct a thorough tonnage and energy curve analysis for your specific dies to avoid under-sizing the press and causing premature mechanical failure.
Assess your facility constraints, including ceiling height, crane capacity, and foundation requirements, to prepare the site properly.
A: Straight-side presses utilize a closed, four-pillar frame design. This symmetrical structure eliminates angular deflection under heavy loads. Instead of bending open like a C-frame, a straight-side frame stretches vertically, keeping the ram and bed perfectly parallel during the stamping stroke.
A: By preventing lateral movement and maintaining strict parallelism, the press stops uneven wear on guide pins and cutting edges. This precise alignment significantly extends the intervals between die sharpenings and prevents catastrophic tooling damage.
A: Choose a hydraulic press when your application requires consistent pressure throughout the entire stroke, such as in deep drawing operations. Choose a mechanical press for high-speed precision, blanking, and higher strokes per minute (SPM).
A: Die size is limited only by the specific machine's bed dimensions and tonnage capacity. Straight-side presses are built for massive tooling, routinely handling progressive dies well over 120 inches in length and weighing tens of thousands of pounds.
A: Technicians use precision load cells and laser measurement tools during the actual stamping stroke. This measures the deflection and alignment under working tonnage, providing a true picture of accuracy rather than just checking the resting state.
A: Yes. High-speed precision straight-side presses are industry standards for manufacturing motor laminations and electronic components. They feature extreme vibration resistance, ultra-tight gib clearances, and optimized slider kinematics for rapid cycling.
