Progressive die stamping is a highly efficient and precise manufacturing process that is essential for the production of small precision metal parts. This process, often used in industries such as automotive, electronics, and medical device manufacturing, provides a way to produce high volumes of small, intricate parts with exceptional accuracy. In this article, we will explore the various aspects of progressive die stamping as it applies to small precision metal parts, highlighting its benefits, the materials used, and the steps involved in the stamping process.
Progressive die stamping is a widely used technique in the manufacturing industry, especially when it comes to the production of small precision metal parts. The process is designed to operate with high efficiency, producing small and complex parts with tight tolerances in large quantities.
Small metal parts are often crucial components in a wide range of products, including automotive assemblies, consumer electronics, and medical devices. These components require a high level of precision and consistency, which progressive die stamping can provide. The ability to create intricate features and geometric shapes while maintaining dimensional accuracy makes progressive die stamping a preferred method for manufacturers seeking high-quality results.

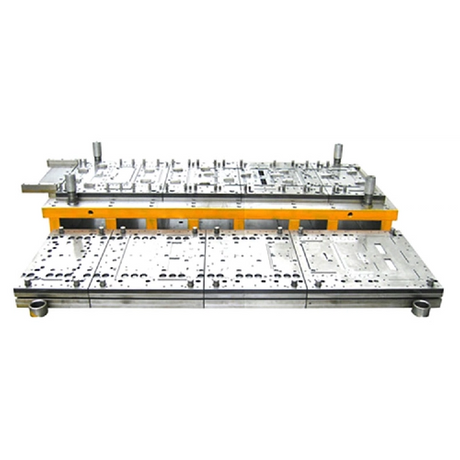

Progressive die stamping is a continuous manufacturing process that uses a die to perform multiple operations on a metal strip as it moves through the die stations. Unlike traditional single-operation stamping, progressive die stamping performs a sequence of operations in one die, gradually shaping the metal into the desired part. The process involves several stages, each focused on a specific operation such as cutting, bending, or forming.
Die Station Setup: The die used in progressive stamping is equipped with multiple stations. Each station performs a unique function, such as piercing, bending, or trimming. These operations occur in a progressive sequence as the material moves through the die.
Material Feeding: The process begins with a coil of metal being fed into the die. The material moves through the die continuously, passing through each station in sequence. The die performs operations on the material, transforming it into the final part.
Pressing Action: A press provides the necessary force to carry out each operation. The material is subjected to this force as it passes through the die, and the precise movement of the die ensures the material is shaped to exact specifications.
Progressive die stamping is ideal for manufacturing small precision parts because of its ability to produce parts with high accuracy and speed. The key features of this process include:
One of the primary reasons progressive die stamping is used for small precision parts is its ability to maintain tight tolerances. The multi-stage process ensures that each part is manufactured with high accuracy. This is crucial in industries such as electronics, where even small deviations can affect the performance of components.
The progressive die allows manufacturers to perform multiple operations in a single pass, which reduces the need for multiple setups and minimizes handling times. This makes the process efficient for high-volume production of small parts.
Progressive die stamping can be easily automated, allowing for consistent part quality and increased production speed. Automated feeding systems and robotic part handling ensure that each part is produced efficiently with minimal human intervention.
Progressive die stamping offers several benefits when it comes to the production of small precision metal parts. These benefits make it a popular choice in industries where high-volume production and precision are essential.
One of the key advantages of progressive die stamping is its ability to produce large quantities of parts quickly. Since multiple operations are performed in one die, the overall cycle time is shorter, which increases productivity. The automated nature of the process also contributes to faster production rates.
Because progressive die stamping uses a continuous strip of metal, material waste is minimized. The die is designed to optimize the use of the material, ensuring that the maximum amount of usable parts is produced with minimal scrap. This helps to lower production costs and reduce the environmental impact.
Progressive die stamping ensures that each part is produced to the same high standard. Since the process is automated, human error is minimized, and the parts are consistently manufactured with the required precision. This is particularly important when producing small parts that must meet exact specifications.
The materials used in progressive die stamping play a crucial role in determining the final quality and functionality of the parts produced. The choice of material is based on the requirements of the part, including its strength, flexibility, and conductivity.
Material | Properties | Common Applications |
Stainless Steel | High strength, corrosion resistance, and durability. | Automotive parts, medical devices, and electronics. |
Aluminum | Lightweight, corrosion-resistant, and easy to form. | Aerospace, automotive, and consumer products. |
Brass | Excellent conductivity and corrosion resistance. | Electrical connectors, plumbing parts. |
Copper | High electrical conductivity and malleability. | Electrical components, connectors. |
Stainless Steel: Ideal for parts that require strength and resistance to harsh environments, such as automotive components and medical devices.
Aluminum: Lightweight and corrosion-resistant, making it perfect for industries such as aerospace and automotive.
Brass and Copper: Excellent materials for components that require high conductivity, such as electrical connectors.
When selecting the right material for progressive die stamping, factors such as part strength, weight, corrosion resistance, and electrical conductivity must be considered. The choice of material will affect not only the quality of the part but also the cost and performance.
The process flow of progressive die stamping involves a series of steps that transform a simple metal strip into a fully formed part. Each step in the process is designed to ensure that the part is produced with precision and accuracy.
Material Feeding: A coil of metal is fed into the die by an automated feeder system. The material is positioned precisely to ensure each operation is performed accurately.
Cutting and Piercing: The first stations in the die typically involve cutting and piercing the material to shape it and create any necessary holes.
Bending and Forming: As the material progresses through the die, additional stations perform bending, forming, or other shaping operations to create the desired part features.
Finishing: The final stations in the die may involve additional trimming or finishing operations to refine the part and remove any excess material.
Part Ejection: Once the part has been fully formed, it is ejected from the die. The finished part is ready for further processing or assembly.
Each operation in the progressive die is crucial to ensuring that the part meets the required specifications. From cutting and piercing to bending and finishing, every station contributes to the final quality and functionality of the part.
Progressive die stamping is used in a wide range of industries where small, precision parts are required. The process is well-suited for producing complex components in high volumes with minimal waste.
Automotive Industry: Used for producing small parts such as brackets, connectors, and clips for vehicle assembly.
Electronics Industry: Produces small parts like connectors, switches, and housings for electronic devices.
Medical Device Manufacturing: Stamps small, precise components used in medical instruments and devices.
Consumer Products: Used in the production of hardware, home appliances, and other consumer goods.
Connectors
Pins and Fasteners
Brackets
Clips
Terminals
These parts must be manufactured with precision to ensure that they function correctly within their respective applications.
Progressive die stamping is a vital process for producing small precision metal parts in high volumes. The multi-stage nature of the process enables us to create complex, intricate parts with tight tolerances while minimizing material waste. This high level of speed, efficiency, and precision makes progressive die stamping the preferred method for industries that require the mass production of small, detailed components.
At Zhejiang Jinaolan Machine Tool Co., Ltd., we specialize in providing advanced progressive die stamping solutions that cater to a wide range of industries, including automotive, electronics, and medical devices. Our expertise ensures that every part we produce meets the highest quality standards, offering our clients both consistency and cost-efficiency.
If you're looking to improve your manufacturing process or need assistance in developing high-precision, small metal parts, we invite you to reach out to us. Let us help you enhance your production capabilities with our cutting-edge progressive die stamping technology.
1. What types of small parts can be produced using progressive die stamping?
Progressive die stamping can produce a wide range of small parts, including connectors, pins, clips, brackets, and fasteners, which are commonly used in automotive, electronics, and medical industries.
2. How precise is progressive die stamping for small parts?
Progressive die stamping is highly precise, allowing for the production of small parts with tight tolerances. The multi-stage process ensures that parts are consistently made to the required dimensions, ensuring uniformity across all produced parts.
3. What are the most common materials used for small precision metal parts in progressive die stamping?
The most common materials include stainless steel, aluminum, brass, and copper. Each material is selected based on the requirements of the part, such as strength, weight, corrosion resistance, and electrical conductivity.
4. Is progressive die stamping suitable for both low and high-volume production of small parts?
While progressive die stamping is most efficient for high-volume production, it can also be used for smaller production runs, especially if the parts are highly complex and require precise tolerances.
