Transfer die stamping is a vital manufacturing process, particularly in industries like automotive and structural part production. This process allows for the efficient creation of complex parts through a sequence of dies. Unlike traditional single-station or progressive die stamping methods, transfer die stamping moves a material blank from one die to the next using a transfer system. This enables multiple operations, such as blanking, punching, bending, and forming, to be carried out in a single cycle. The result is higher efficiency, greater precision, and a reduction in the need for additional tooling or labor.
The automotive industry relies heavily on high-volume manufacturing processes like transfer die stamping to produce parts that meet strict quality and performance standards. As cars become more complex, the demand for innovative manufacturing techniques that can produce lightweight, durable, and precisely engineered parts increases. Transfer die stamping is particularly well-suited for creating intricate components that require high tolerances, which is essential for the precise fitment of automotive parts.

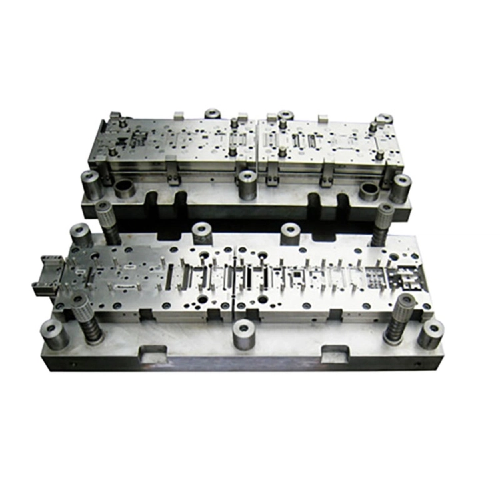

Transfer die stamping utilizes a sequence of dies arranged in a press line. Each die performs a specific operation, and the material blank moves from one die to the next through a transfer mechanism. Here's a detailed breakdown of the process:
Material Feeding: The sheet of material is fed into the press. The material is typically metal, such as steel, aluminum, or stainless steel, and is placed into the feeding system that moves it into the first die.
Blanking: The first die typically performs blanking, which involves cutting the raw material into the desired blank shape. This blank will then undergo further processing in subsequent dies.
Progressive Operations: The blank is moved from one die to another in the press, where operations like punching, bending, or forming are performed. These stages build up the part’s shape and characteristics progressively.
Final Operation: After going through all the necessary stages, the part is ejected from the press, fully formed and ready for use.
The key to the efficiency of transfer die stamping is the use of an automatic transfer system. This system moves the blank from die to die, ensuring that the material is processed efficiently without needing manual handling. The result is faster cycle times and a reduction in labor costs.
Transfer die stamping stands out from other traditional stamping methods due to its flexibility and efficiency. Here's a detailed comparison of how it stacks up against other methods:
Feature | Transfer Die Stamping | Single-Station Stamping | Compound Die Stamping |
Number of Stages | Multiple stages in a single cycle | Single-stage process | Multiple operations in one die |
Part Complexity | Handles complex geometries | Limited to simple shapes | Moderate complexity |
Efficiency | High due to multiple operations | Lower due to single operation | Moderate efficiency |
Precision | High due to synchronized movement | High but limited to one operation | High precision in one operation |
Cost | Higher due to setup complexity | Lower due to simpler processes | Moderate |
As shown in the table, transfer die stamping excels in producing complex parts with high precision while maintaining production efficiency. It is especially useful when parts require multiple operations to be performed simultaneously.
Transfer die stamping greatly improves production efficiency by reducing the number of press cycles needed to complete a part. By combining multiple operations in a single cycle, it eliminates the need for secondary processes such as welding or assembly. This leads to faster production times, which is especially important in high-volume manufacturing environments like the automotive industry.
Reduced Lead Times: Since multiple steps are performed in one cycle, the total lead time for producing parts is significantly reduced. This allows automotive manufacturers to meet strict delivery schedules and customer demands.
Faster Setup Times: The process can be streamlined, as only one setup is required for multiple operations. This reduces the amount of time spent changing tools and ensures that the press is operating continuously.
Transfer die stamping is renowned for its ability to produce parts with exceptional precision. The high level of control over each operation ensures that parts are produced to the exact specifications required.
Tight Tolerances: Transfer die stamping can achieve tight tolerances that are critical in automotive manufacturing. Parts typically exhibit deviations in the range of ±0.02mm to ±0.05mm, depending on the material and the complexity of the part.
Reduced Variability: As the process is automated and the material moves through the dies in a controlled manner, the chance for human error is minimized. This results in highly consistent parts, even in high-volume production runs.
Transfer die stamping is ideal for producing complex automotive parts that require multiple features such as cutouts, holes, and bends. It can handle intricate geometries that are difficult to achieve with traditional single-operation methods.
Complex Geometries: Parts such as door frames, chassis components, and engine mounts often require detailed shapes, which can be efficiently produced using transfer die stamping.
Multi-Feature Parts: Transfer die stamping can produce parts that combine multiple features, such as cutting, punching, and bending, all in one cycle. This results in higher precision and fewer errors compared to performing each operation separately.
Transfer die stamping is not limited to automotive body parts; it is also widely used in structural part production. Structural components, such as:
Chassis Components
Frame Rails
Cross Members
These parts require durability and precision, which makes transfer die stamping an ideal solution. The process’s ability to handle multiple operations allows for the production of strong, lightweight components that meet the strict standards of the automotive and aerospace industries.
Transfer die stamping can handle a range of materials, which is critical in structural part production. Materials commonly used include:
High Strength Steel (HSS): HSS is commonly used in structural parts due to its strength and ability to withstand high stress.
Aluminum Alloys: Aluminum is a popular choice for lightweight components that help improve fuel efficiency.
Stainless Steel: Stainless steel is used in components that require corrosion resistance and strength.
Each of these materials presents unique challenges during the stamping process, but transfer die stamping’s ability to handle multiple operations in a single cycle makes it an excellent choice for working with these materials.
Transfer die stamping helps manufacturers reduce production costs in several key ways:
Fewer Operations: By combining multiple steps into one cycle, manufacturers save on tool costs, labor, and equipment maintenance. This also reduces the need for additional machinery or secondary processes.
Less Material Waste: The efficiency of the transfer die process minimizes material waste. Parts are cut and shaped with minimal scrap, which lowers material costs.
Lower Labor Costs: With automation, fewer manual interventions are needed, allowing for a reduction in labor costs and the risk of errors caused by human operators.
The future of transfer die stamping is closely tied to advancements in automation and robotics. The integration of robotics into stamping lines can further enhance efficiency and reduce human error.
Automation and Robotics: The continued automation of stamping presses will allow for even faster cycle times, increased production flexibility, and reduced labor costs.
Smart Die Technology: Future innovations include the use of sensors and data analytics to monitor die wear, material stress, and part quality in real-time. These improvements will lead to more efficient processes and higher quality parts.
As the automotive industry shifts toward more sustainable practices, transfer die stamping can help meet environmental goals by reducing waste, energy consumption, and material usage. The efficiency of the process helps minimize the carbon footprint of manufacturing operations, which is crucial as manufacturers aim to reduce emissions.
In conclusion, transfer die stamping is a transformative process in automotive and structural part manufacturing, providing superior efficiency, precision, and cost-effectiveness. This technology enables the production of complex parts in a single cycle, reducing both production time and operational costs. As the automotive industry evolves, the future of transfer die stamping lies in further automation and advanced technologies, which will continue to drive innovation and sustainability.
If you are looking for reliable and advanced transfer die stamping solutions, we encourage you to learn more about Zhejiang Jinaolan Machine Tool Co., Ltd. Our expertise in delivering high-quality, efficient, and tailored stamping solutions can help you meet the challenges of modern manufacturing. Contact us today to explore how we can assist in achieving your production goals with cutting-edge technology.
Transfer die stamping is a process that uses a series of dies to move a sheet of material through multiple stages, allowing for the production of complex parts. Unlike single-station or compound die stamping, it performs several operations in a single press cycle.
Transfer die stamping is compatible with a wide range of materials, including high-strength steel, aluminum alloys, and stainless steel, making it ideal for automotive and structural parts.
By combining multiple operations in a single cycle, transfer die stamping reduces production time, minimizes machine downtime, and enhances part consistency, resulting in higher efficiency.
Transfer die stamping is ideal for producing complex automotive parts such as door frames, chassis components, and body panels, which require intricate features and high precision.
The future of transfer die stamping includes advancements in automation, robotics, and smart die technology, which will further improve efficiency, precision, and sustainability in automotive manufacturing.
