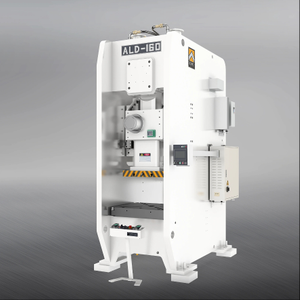

Motor stator rotor making machine Stator rotor punching machine

CHARACTERISTICS OF ALF SERIES EQUIPMENT
1、Straight column integrated frame eliminates the opening issues of c frame power press.
2、Ultra-long eight-sided guide rails, stable and reliable accuracy.
3、Circulating thin oil lubrication improves the working environment of machine.
4、Perfect man-machine protection, in line with safety press standards.

Model:
ALF-630
Brand:
KINGLAN

Availability:

Quantity:



Inquire Add to Basket

BASIC PARAMETERS OF ALP SERIES

Model	Unit	ALM-160		ALM-200		ALM-250		ALM-300
Stroke Length	mm	200		200		200		200
Stroke Per Minute	S.P.M	20-50		20-50		20-50		20-50
Tonnage Rated Point	mm	6		6		7		7
Max. Die Height	mm	460		460		500		500
Slide Adjustment	mm	100		110		120		120
Slide Area	mm	1000*1000	1000*1000	1050*1000	1200*1000	1050*1000	1200*1000	1050*1000	1200*1000
Bolster Area	mm	1200*1200	1200*1200	1300*1300	1400*1300	1300*1300	1400*1300	1300*1300	1400*1300
Side Opening Size	mm	700*500		700*500		900*600		900*600
Dia Of Shank Hole	mm	65		65		65		65
Main Motor	KW*P	18.5*4		22*4		30*4		37*4
Max. Upper Die Weight	kg	600		700		1000		1200
Left And Right Column Spacing	mm	2400		2400		2700		2900
Required Air Pressure	kgf/cm²	5~6
Press Accuracy		CNS(JIS)1cIass

ACCESSORIES

STANDARD ACCESSORIES		OPTIONAL ACCESSORIES
Hydraulic overload protection device	S	Pneumatic Die Cusion Device	O
Inverter	S	Quick Die Change Device (Die Lifter,Clamp And Die Arm）	O
Electric Slide Adjust Device	S	Slide Knock-out Device	O
Electric Grease Lubrication System	S	Anti-vibration pad	O
Electric Die Height Indicator	S	Photoelectric safety device	O
Slide and die balancing device	S	Feeder	O
Rotary Cam Switch	S	Uncoiler	O
Crank Angle Indicator	S	Leveler	O
Air Source Connector	S	Transfer Arm	O
Precut Counter	S
Preset Counter	S
Overrun protection device	S
Tool Box	S
Operation Manual	S
Anti-vibration pad	S
Misfeeding Detection Socket	S
Die Room Light	S
