Power Press Machine Explained: How It Works And What It's Used For

In the modern manufacturing landscape, precision and efficiency are paramount. Industries ranging from automotive to aerospace rely on sophisticated machinery to transform raw materials into finished components. Among these essential machines, the power press stands as one of the most versatile and widely used pieces of equipment in metal fabrication facilities worldwide. Understanding how these machines function and their diverse applications is crucial for manufacturers, engineers, and procurement specialists seeking to optimize their production capabilities.

The evolution of power press technology has revolutionized manufacturing processes, enabling mass production with unprecedented accuracy. From small workshops to large industrial complexes, these machines have become indispensable tools for shaping the world around us. Whether you are new to the manufacturing industry or looking to expand your knowledge of metal forming equipment, this comprehensive guide will provide you with detailed insights into power press machines.

A power press machine is a mechanical device that uses compression force to shape, cut, bend, or form metal sheets and other materials. It converts rotational motion into linear motion through a system of flywheels, clutches, and crankshafts, delivering precise force to transform raw materials into finished components. These machines are essential equipment in manufacturing industries including automotive, aerospace, electronics, and general metal fabrication.

This article explores the fundamental principles behind power press operation, examines the various types available in the market, and details their extensive applications across multiple industries. We will also discuss critical safety considerations and maintenance requirements to ensure optimal performance and operator protection. By the end of this guide, you will have a thorough understanding of power press machines and their role in modern manufacturing.

Table of Contents

1. What Is a Power Press Machine

2. How Power Press Machines Work

3. Types of Power Press Machines

4. Key Components and Their Functions

5. Industrial Applications and Uses

6. Safety Features and Operating Guidelines

7. Maintenance and Troubleshooting

8. Choosing the Right Power Press for Your Needs

What Is a Power Press Machine

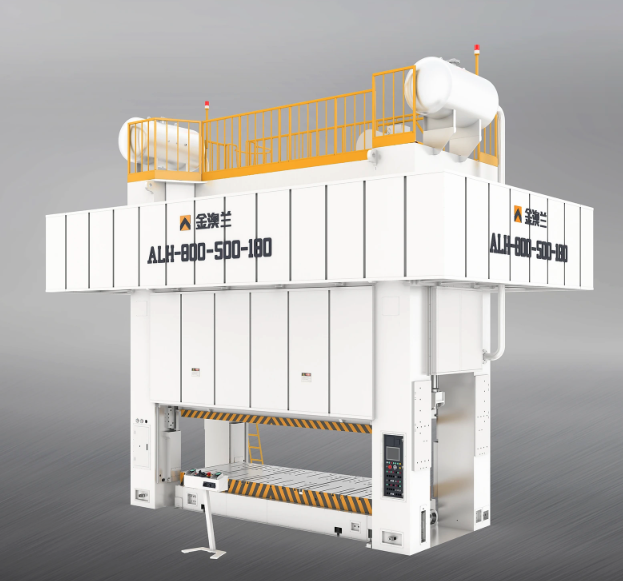

A power press machine is a mechanical or hydraulic device designed to apply controlled force to metal sheets or other materials for cutting, bending, punching, or forming operations. It operates by converting energy into mechanical force through various drive systems, enabling precise and repeatable manufacturing processes.

Power press machines represent the backbone of sheet metal fabrication industries. These robust machines are engineered to handle various metalworking tasks with remarkable precision and consistency. The fundamental purpose of a power press is to apply sufficient force to deform or cut material placed between specialized tooling components known as dies and punches.

The versatility of power press machines extends beyond simple cutting operations. Modern power presses can perform complex forming tasks including deep drawing, coining, embossing, and progressive die stamping. This adaptability makes them invaluable assets in manufacturing facilities that produce diverse product ranges.

Key Characteristics of Power Press Machines:

• Force Generation: Capable of generating forces ranging from a few tons to thousands of tons depending on the model and application requirements

• Precision Control: Delivers consistent force application ensuring uniform product quality across high-volume production runs

• Operational Speed: Mechanical presses can achieve high stroke rates suitable for mass production environments

• Material Compatibility: Processes various materials including steel, aluminum, copper, brass, and certain plastics

• Automation Capability: Modern presses integrate seamlessly with automated feeding systems and robotic handling equipment

The classification of power press machines depends on several factors including power source, frame design, and intended application. Understanding these classifications helps manufacturers select appropriate equipment for their specific production requirements. The primary categories include mechanical power presses, hydraulic power presses, pneumatic presses, and the increasingly popular servo-electric presses.

How Power Press Machines Work

Power press machines operate by converting rotational energy into linear motion through a mechanical linkage system. The process involves a motor driving a flywheel that stores kinetic energy, which is then transferred through a clutch and crankshaft mechanism to move a ram vertically, applying force to the workpiece positioned between die and punch sets.

The working principle of power press machines centers on energy transformation and controlled force application. Understanding this mechanism is essential for operators and maintenance personnel to ensure safe and efficient operation.

The Operational Cycle:

1. Energy Storage Phase: The electric motor rotates the flywheel, building up kinetic energy. The flywheel's mass and rotational speed determine the amount of stored energy available for the pressing operation.

2. Engagement Phase: When the operator initiates the cycle, the clutch engages, connecting the rotating flywheel to the crankshaft mechanism. This transfer of energy begins the downward stroke of the ram.

3. Working Phase: The crankshaft converts rotational motion into linear movement, driving the ram downward with tremendous force. The punch attached to the ram contacts the material, either cutting through it or pressing it into the die cavity to achieve the desired shape.

4. Return Phase: After reaching the bottom of the stroke (bottom dead center), the crankshaft mechanism reverses direction, raising the ram back to its starting position. The clutch disengages, and the flywheel continues rotating, ready for the next cycle.

In mechanical power presses, the force profile varies throughout the stroke. Maximum force is typically achieved near the bottom of the stroke, making these machines ideal for blanking, punching, and shallow drawing operations. The fixed stroke length and speed characteristics make mechanical presses particularly suitable for high-speed, repetitive operations where consistency is paramount.

Hydraulic power presses operate on a different principle based on Pascal's law. These systems use hydraulic fluid to transmit pressure from a smaller piston to a larger piston, generating substantial force multiplication. The hydraulic system allows for variable stroke lengths and adjustable pressure throughout the entire stroke, providing greater flexibility for complex forming operations.

The force calculation in hydraulic systems follows the principle that pressure applied to a confined fluid transmits equally in all directions. This enables hydraulic presses to maintain full tonnage throughout the entire stroke length, unlike mechanical presses where force varies with crank angle. This characteristic makes hydraulic presses superior for deep drawing, coining, and applications requiring sustained pressure.

Types of Power Press Machines

Power press machines are classified into four main categories based on their power transmission systems: mechanical presses using flywheel and crank mechanisms, hydraulic presses utilizing fluid power, pneumatic presses operating on compressed air, and servo-electric presses employing advanced motor control technology. Each type offers distinct advantages for specific manufacturing applications.

Selecting the appropriate power press type requires careful consideration of production requirements, material characteristics, and operational constraints. The following detailed comparison helps manufacturers understand the unique capabilities of each press category.

1. Mechanical Power Presses

Mechanical power presses represent the most traditional and widely used category in manufacturing industries. These machines utilize a flywheel to store kinetic energy, which is released through a clutch and brake system to drive the ram. Mechanical presses excel in high-speed stamping operations and are the preferred choice for mass production environments.

Advantages of mechanical presses include high operational speeds, energy efficiency during continuous operation, and relatively lower maintenance requirements compared to hydraulic systems. However, they offer limited stroke adjustability and variable force throughout the stroke, which may restrict their application for certain complex forming operations.

2. Hydraulic Power Presses

Hydraulic presses utilize fluid power to generate pressing force. A hydraulic pump pressurizes fluid, which actuates cylinders to move the ram. These machines provide exceptional control over force and speed throughout the entire stroke length.

The primary advantages of hydraulic presses include full tonnage availability throughout the stroke, variable stroke lengths, and adjustable pressure settings. These characteristics make hydraulic presses ideal for deep drawing, coining, and applications requiring precise force control. However, they typically operate at slower speeds than mechanical presses and consume more energy due to continuous pump operation.

3. Pneumatic Presses

Pneumatic presses operate using compressed air to drive the ram. These machines are generally smaller and suitable for light-duty applications requiring lower force levels. They offer clean operation and fast cycle times but are limited in force capacity compared to mechanical and hydraulic alternatives.

4. Servo-Electric Presses

Servo-electric presses represent the latest advancement in pressing technology. These machines use servo motors to drive the ram directly, eliminating the need for flywheels, hydraulic systems, or pneumatic components. Servo presses offer programmable motion profiles, enabling precise control over position, velocity, and force throughout the stroke.

Comparative Analysis of Power Press Types:

Frame Design Classifications:

Beyond power source classifications, power presses are also categorized by frame design. The C-frame (gap frame) design offers excellent accessibility from three sides, making it ideal for operations requiring frequent die changes or manual feeding. H-frame (straight side) presses provide superior rigidity and are preferred for heavy-duty applications requiring high precision and minimal deflection.

Key Components and Their Functions

Power press machines consist of several critical components including the frame, flywheel, clutch and brake system, crankshaft, ram, bed, and die sets. Each component plays a specific role in converting energy into precise mechanical force and ensuring safe, reliable operation.

Understanding the function of each component is essential for proper operation, maintenance, and troubleshooting of power press equipment. The following detailed breakdown explains the role of major components in mechanical and hydraulic press systems.

Frame Structure

The frame provides the structural backbone of the power press, supporting all other components and absorbing the forces generated during operation. Frame designs vary between C-frame configurations, which offer accessibility and compact footprint, and H-frame designs that provide superior rigidity for precision applications. The frame must withstand significant stresses without deflection to maintain accuracy and prevent premature wear.

Flywheel and Drive System

In mechanical presses, the flywheel serves as an energy storage device. The motor maintains the flywheel's rotation, storing kinetic energy that is released during the pressing cycle. The size and mass of the flywheel determine the available energy for forming operations. Larger flywheels store more energy, enabling higher tonnage operations or processing tougher materials.

Clutch and Brake Mechanism

The clutch connects the flywheel to the crankshaft when engaged, transferring rotational energy to drive the ram. The brake stops the ram at the appropriate position after each stroke. Modern presses use combined clutch-brake units with pneumatic or hydraulic actuation for precise control. Safety regulations require these components to function reliably to prevent accidental operation or uncontrolled ram movement.

Crankshaft and Linkage

The crankshaft converts rotational motion from the flywheel into reciprocating linear motion for the ram. The crank's eccentricity determines the stroke length of the press. Some presses use knuckle joint mechanisms or link drive systems to modify the motion characteristics, providing slower approach speeds and faster return strokes for improved productivity.

Ram and Slide

The ram (or slide) is the moving component that carries the upper die or punch. It must maintain precise alignment with the bed to ensure accurate part production. Rams are guided by gibs or linear bearings to minimize side play and maintain perpendicularity during the stroke. The ram's weight and design affect the press's dynamic characteristics and forming capabilities.

Bed and Bolster Plate

The bed provides the stationary work surface that supports the lower die. The bolster plate is a removable surface mounted on the bed, allowing for die mounting and providing a wear surface that can be replaced when necessary. Beds may be fixed or adjustable in height to accommodate different die sets and operations.

Control Systems

Modern power presses incorporate sophisticated control systems including programmable logic controllers (PLCs), touch screen interfaces, and safety monitoring devices. These systems manage stroke parameters, safety interlocks, production counting, and diagnostic functions. Advanced presses may include tonnage monitors, die protection systems, and automatic feed integration.

Die and Tooling

While not part of the press itself, dies are essential components that determine the specific operation performed. Dies consist of mating upper and lower components that shape, cut, or form the material. Die design considerations include material type, thickness, part geometry, and production volume. Quick-change die systems reduce setup times and increase operational flexibility.

Industrial Applications and Uses

Power press machines serve critical functions across diverse industries including automotive manufacturing, aerospace component production, electrical equipment fabrication, consumer appliance manufacturing, and general metalworking operations. These machines produce everything from simple brackets to complex structural components with high precision and repeatability.

The versatility of power press machines enables their deployment in virtually every sector requiring metal forming capabilities. Understanding the specific applications helps manufacturers optimize their equipment selection and production processes.

Automotive Industry Applications

The automotive sector represents one of the largest consumers of power press capacity. These machines produce body panels, chassis components, brackets, and structural elements. High-speed mechanical presses perform blanking and stamping operations for mass-produced parts, while hydraulic presses handle deep drawing operations for complex shapes such as fuel tanks and fenders.

Progressive die stamping in power presses enables the production of intricate components with multiple features formed in a single continuous operation. This approach maximizes production efficiency while maintaining tight tolerances required for automotive assembly.

Aerospace Manufacturing

Aerospace applications demand exceptional precision and material integrity. Power presses form aircraft skins, structural ribs, brackets, and fastening components from high-strength aluminum alloys and titanium. Hydraulic and servo-electric presses are preferred for these applications due to their precise force control and ability to handle exotic materials without compromising metallurgical properties.

Electrical and Electronics Industry

Power presses manufacture electrical enclosures, switchgear components, connector terminals, and heat sinks. The electronics industry utilizes high-speed precision presses for stamping lead frames, connectors, and shielding components from thin gauge materials. Miniaturization trends in electronics require presses capable of maintaining micron-level precision.

Appliance Manufacturing

Household appliances rely heavily on power press operations for component fabrication. Washing machine drums, refrigerator panels, oven cavities, and air conditioning housings are all produced using various pressing operations. The ability to form complex shapes with surface finish requirements makes power presses essential for appliance production.

Construction and Infrastructure

Power presses produce structural steel components, fastening systems, and architectural metalwork. These applications often require heavy-tonnage presses capable of forming thick plate materials. The construction industry benefits from the high productivity of power presses for standard components such as brackets, clips, and connection plates.

Medical Device Manufacturing

The medical industry utilizes power presses for producing surgical instruments, implant components, and device housings. Servo-electric presses are increasingly preferred for medical applications due to their clean operation (no hydraulic oil), precise control, and ability to maintain cleanroom compatibility.

Common Manufacturing Operations:

• Blanking: Cutting flat shapes from sheet material

• Punching: Creating holes or openings in material

• Bending: Forming angular shapes and profiles

• Drawing: Forming cup-shaped or box-shaped components

• Coining: Precision forming with high pressure for fine detail

• Embossing: Creating raised or recessed patterns on surfaces

• Stamping: General term for various cutting and forming operations

Safety Features and Operating Guidelines

Power press machines incorporate multiple safety systems including two-hand control devices, light curtains, emergency stop buttons, mechanical guards, and interlock systems. These features protect operators from pinch points, ejected materials, and unintended machine operation while ensuring compliance with occupational safety regulations.

Operating power press machinery presents significant hazards due to the high forces involved and the moving components. Comprehensive safety protocols and protective devices are essential to prevent accidents and ensure regulatory compliance.

Primary Safety Devices

Two-hand control systems require operators to simultaneously press separate buttons to initiate the stroke, ensuring both hands are away from the die area. Light curtains (photoelectric safety devices) create an invisible barrier that stops the machine if interrupted. These devices are mandatory for operations using foot pedal controls.

Physical guards and barriers prevent access to moving parts during operation. Fixed guards provide permanent protection, while interlocked guards stop the machine when opened. Adjustable guards accommodate different die sizes while maintaining protection.

Emergency Stop Systems

Emergency stop buttons must be strategically located and easily accessible. These devices immediately halt machine operation in hazardous situations. Modern presses incorporate Category 0 or Category 1 stop systems depending on the severity of the hazard and stopping time requirements.

Overload Protection

Overload protection systems prevent machine damage and safety hazards caused by excessive force. Hydraulic relief valves and mechanical torque limiters protect against overload conditions. Tonnage monitors alert operators when approaching machine capacity limits.

Operator Training Requirements

Only trained and authorized personnel should operate power press equipment. Training programs must cover machine operation, safety device function, die changing procedures, and emergency protocols. Operators must understand the specific hazards associated with each machine and operation.

Personal Protective Equipment

Operators must wear appropriate PPE including safety glasses, hearing protection, steel-toed boots, and cut-resistant gloves when handling material. Loose clothing and jewelry must be prohibited to prevent entanglement hazards.

Safe Operating Procedures:

1. Conduct pre-operation inspections to verify safety device functionality

2. Ensure proper die installation and alignment before operation

3. Never bypass or disable safety devices

4. Use appropriate feeding tools to keep hands away from the die area

5. Implement lockout/tagout procedures during maintenance

6. Maintain clear work areas free of obstructions and debris

7. Monitor machine performance for unusual sounds or vibrations

Regulatory Compliance

Power press operations must comply with standards such as OSHA regulations in the United States, CE directives in Europe, and equivalent safety standards in other jurisdictions. Regular safety audits and risk assessments ensure ongoing compliance and identify potential hazards before accidents occur.

Maintenance and Troubleshooting

Regular maintenance of power press machines includes lubrication of moving parts, inspection of clutch and brake systems, alignment verification, and replacement of worn components. Preventive maintenance programs extend equipment lifespan, ensure safety system reliability, and prevent costly production downtime.

Proper maintenance is essential for safe and efficient power press operation. A structured maintenance program addresses routine care, periodic inspections, and predictive maintenance based on operating conditions.

Daily Maintenance Tasks

Operators should perform visual inspections before each shift, checking for fluid leaks, unusual noises, loose fasteners, and damaged safety devices. Lubrication points must be serviced according to manufacturer specifications. The clutch and brake systems require particular attention as they are critical to safe operation.

Periodic Inspection Schedule

Weekly inspections should include verification of safety device function, examination of electrical connections, and checking of pneumatic or hydraulic system pressures. Monthly maintenance involves more detailed examination of drive components, measurement of brake wear, and verification of tonnage capacity.

Annual inspections typically require qualified technicians to perform comprehensive evaluations including structural integrity assessment, alignment verification, and non-destructive testing of critical components. Documentation of all maintenance activities supports warranty claims and regulatory compliance.

Common Issues and Solutions

Excessive noise often indicates worn bearings, loose components, or inadequate lubrication. Ram drift or stopping position variations may signal brake wear or clutch adjustment issues. Inconsistent part quality can result from die wear, alignment problems, or tonnage variations.

Hydraulic system issues include fluid contamination, seal failures, and pressure fluctuations. Regular fluid analysis and filter replacement prevent many hydraulic problems. Mechanical presses may experience clutch slippage, flywheel vibration, or crankshaft bearing wear requiring professional attention.

Lubrication Requirements

Proper lubrication is critical for power press longevity. Centralized lubrication systems simplify maintenance but require monitoring to ensure proper function. Operators must use specified lubricants and maintain appropriate levels in all reservoirs. Over-greasing can be as harmful as under-greasing, leading to contamination and component failure.

Record Keeping

Comprehensive maintenance records track service history, component replacements, and performance trends. These records support troubleshooting efforts, justify capital replacement decisions, and demonstrate compliance with safety regulations. Modern presses with condition monitoring capabilities generate automatic maintenance alerts based on operating hours or cycle counts.

Choosing the Right Power Press for Your Needs

Selecting the appropriate power press requires evaluation of production requirements including material type and thickness, part geometry, production volume, precision requirements, and available resources. Matching machine capabilities to specific manufacturing needs ensures optimal productivity and return on investment.

The decision-making process for power press acquisition involves careful analysis of technical requirements, operational constraints, and long-term business objectives. The following considerations guide the selection process.

Capacity Requirements

Determine the maximum tonnage required for your operations based on material thickness, shear strength, and part complexity. Select a press with adequate capacity while avoiding excessive oversizing that reduces efficiency. Consider future production needs to ensure the machine accommodates growth.

Stroke Length and Speed

Part depth requirements dictate necessary stroke length. High-volume production favors mechanical presses with fast cycle rates. Complex forming operations may require hydraulic or servo presses with adjustable speeds and longer strokes.

Bed Size and Configuration

The press bed must accommodate your largest dies with sufficient space for material handling. Consider throat depth for C-frame presses or distance between uprights for H-frame designs. Future die requirements should be anticipated when specifying bed dimensions.

Automation Integration

Modern manufacturing often requires integration with automatic feeding systems, transfer mechanisms, or robotic handling. Specify presses with appropriate control systems and interfaces for your automation requirements. Servo presses offer particular advantages for automated cells due to their programmable motion profiles.

Total Cost of Ownership

Initial purchase price represents only a portion of total ownership costs. Evaluate energy consumption, maintenance requirements, tooling costs, and training needs. Higher initial investment in advanced technology such as servo presses may yield lower operating costs and improved productivity over the machine's lifetime.

Vendor Support and Service

Select manufacturers with strong technical support, spare parts availability, and service capabilities. Local service support reduces downtime when maintenance is required. Training programs and documentation quality should factor into vendor selection.

Selection Checklist:

• Define maximum material thickness and type

• Calculate required tonnage with appropriate safety factor

• Determine necessary stroke length and speed

• Evaluate precision and repeatability requirements

• Assess automation and integration needs

• Consider available floor space and power requirements

• Review safety features and compliance certifications

• Analyze total cost of ownership over expected lifespan

Conclusion

Power press machines remain fundamental equipment in modern manufacturing, providing the force and precision necessary to transform raw materials into finished components across countless industries. From the high-speed operations of mechanical presses to the sophisticated control of servo-electric systems, these versatile machines continue to evolve to meet changing production demands.

Understanding the working principles, types, and applications of power press machines enables manufacturers to make informed decisions about equipment selection and operation. The integration of advanced safety features and control systems has significantly improved operator protection while maintaining the productivity that makes these machines indispensable.

As manufacturing technology advances, power presses continue to incorporate innovations in automation, energy efficiency, and precision control. Whether producing automotive components, aerospace parts, or consumer goods, the power press remains an essential tool for metal fabrication operations worldwide. By following proper safety protocols, maintenance procedures, and selection criteria, manufacturers can maximize the benefits of power press technology while ensuring safe and efficient operations for years to come.
