Product Overview

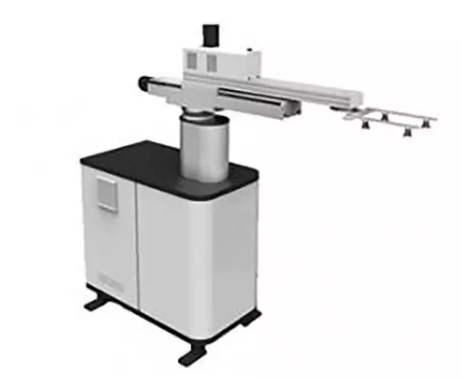

A 2D Manipulator is a robotic arm designed to operate primarily along two axes, the X and Y, with optional limited Z-axis movement. It performs tasks such as picking, placing, flipping, and transferring materials efficiently across a workspace. Core components include the base, linear or rail structure, robotic arm, control system, and an end-effector. End-effectors vary from clamps to vacuum suction cups, allowing flexibility depending on the application. Safety systems ensure smooth operations and protect workers from accidental contact. Compared to traditional 6-axis robots, 2D manipulators are simpler in design, occupy less floor space, and cost less. They are optimized for repetitive planar tasks rather than complex spatial movements. Their compact structure allows easy integration into existing production lines, especially in environments where vertical freedom is not critical.
Key Features
Efficient Planar Handling
The 2D Manipulator allows fast and precise horizontal movements. It handles repetitive tasks efficiently, such as transferring workpieces between machines or assembly stations. Its speed ensures minimal downtime between operations.
Space and Cost Saving
Fewer moving axes reduce mechanical complexity and lower maintenance costs. It also requires a smaller footprint, making it ideal for factories with limited space.
Easy Programming and Maintenance
Its simplified control system uses PLCs or motion controllers. Programming is straightforward, repeatability is high, and maintenance is easier than with multi-axis robots.
Improved Safety
By automating repetitive handling tasks, it reduces manual intervention. Workers face fewer risks from heavy, hot, or sharp materials.
Application
Comfortably handling various coatings ranging from small to large products, its rich product lineup contributes to the automation of the coating process.
Manufacturing and Assembly Efficiency
2D Manipulators play a crucial role in stamping, die handling, and assembly lines. They replace manual operations to ensure fast, precise, and consistent material transfer. Their use reduces human error, increases production speed, and enhances operator safety, creating a smoother, more reliable workflow.
Logistics and Automated Handling Integration
In logistics, packaging, and automated material handling systems, 2D Manipulators streamline repetitive processes such as sorting, stacking, and loading. When integrated with conveyors, feeders, and presses, they form a fully automated, synchronized production cycle. This integration minimizes labor costs and prevents production delays while improving overall efficiency.
Lightweight and Precision Applications
For industries requiring high accuracy and fast cycles—such as electronics, food processing, and small-component assembly—2D Manipulators provide outstanding precision and speed. They are ideal for handling lightweight or delicate items, maintaining consistent output quality, and supporting continuous, high-volume production without excessive wear or maintenance.
Selection Tips and Operational Guidance
Selection Criteria
Choosing the right 2D Manipulator starts with evaluating the workpiece weight, required travel distance, and speed. The gripping method—whether vacuum suction, clamp, or magnetic—must match the material type and handling precision. Production pace also determines motor power and cycle timing. Selecting an undersized or oversized manipulator may reduce efficiency or raise energy costs, so balancing capacity and performance is key.
Installation and Debugging
Proper installation ensures stable operation and long-term reliability. The manipulator’s base should be firmly secured, and rails must be leveled to avoid vibration or misalignment. Smooth linear movement guarantees accurate pick-and-place operations. During debugging, engineers should test repetitive cycles, fine-tune motion paths, and verify sensor responses to eliminate positioning errors before production starts.
Operation and Maintenance
Routine maintenance is vital to keeping the manipulator in peak condition. Regularly inspect rail lubrication, sensor performance, and end-effector wear to prevent downtime. Software updates and control logic optimization should be performed as production demands evolve. Preventive maintenance schedules help extend equipment lifespan and maintain accuracy under continuous operation.
Integration with Downstream Equipment
To achieve seamless production, the 2D Manipulator must synchronize with presses, conveyors, feeders, or robotic arms. Coordinating timing signals and motion sequences ensures a steady production rhythm. Integration also allows real-time communication between machines, reducing idle time and improving throughput. When properly configured, the manipulator becomes a central link in a fully automated workflow.
